Product Details:
|
| Material: | Stainless Steel Wire And Sheet | Surface Treatment: | Electric Galvanized |
|---|---|---|---|
| Type: | Barbed Wire Coil | Razor Type: | Cross Razor |
| Product Name: | Galvanized Material Razor Blade Barbed Wire Razor Wire | Razor Blade Style: | Razor Blade Style |
| Razor Thickness: | 0.5±0.05mm | Inner Wire Dia.: | 2.5±0.1mm |
| Razor Wire Style: | Concertina(cross) | Package: | Inner Waterproof Paper With Woven Bag Outside |
| Highlight: | concertina razor barbed wire,razor coil barbed wire,razor sharp barbed wire |
||
Galvanized Competitive Price Razor Bared Wire Concertina Barbed Protection Fence
Razor barbed wire is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.
With beautiful and sharp blades and strong core wire, razor barbed wire has the features of secure fencing, easy installation, age resistance and other properties.

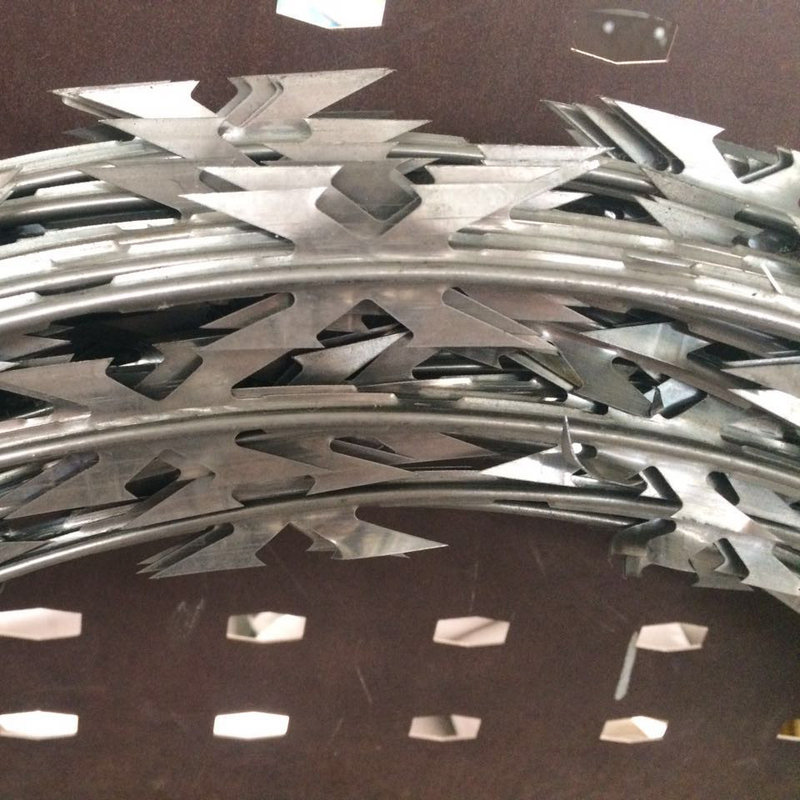

Crossed Razor Wire
Two pieces of razor wire were bounded together by clips to make it more strength.The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.
Flat warp razor wire
Flat warp razor wireis a new type of razor barbed wire. Press two loops into flat then expand them across. We usually use it together with been line razor barbed wire to build a defending wall, or use it alone as a fence.
Razor Wire Fence
Welded razor mesh fence is a new form of razor bared wire mesh for security,it with practicality blade and the feature looks very beautiful.It can be used for guard net of fence ,doors and windows .The specification can be designed as the customers' need.
Razor barbed wire is also named concertina coils or razor type barbed wire.It is a new type of guard fence.
Characteristics: With beautiful and sharp blades and strong core wire,razor wire has the features of good deterrent effects,nice appearance,easy installation,economical and practical and other properties.
Application: Razor barbed wire is widely used in apartment house,organization units,frontier fence, and other sites requiring severe fencing and security.
Classification: Razor wire can be classified into concertina coils,straight type razor wire,crossed type and flat type according to the installation models.
Specification:
| Reference Number |
Thickness (mm) |
Wire Dia (mm) |
Bard Length (mm) |
Bard Width (mm) |
Bard Distance (mm) |
| BTO-10 | 0.5±0.05 | 2.5±0.05 | 10±1 | 13± | 16±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.05 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.05 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.05 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5±0.05 | 28±1 | 15±1 | 53+1 |
| BTO-30 | 0.5±0.05 | 2.5±0.05 | 30±1 | 21±1 | 54±1 |
| CBT-60 | 0.5±0.05 | 2.5±0.05 | 60±1 | 32±1 | 100±1 |
| CBT-65 | 0.5±0.05 | 2.5±0.05 | 65±1 | 21±1 | 100±2 |
Razor Barbed Wire Coil and Unit Loops
| Outside Diameter | No.of Loops | Standard Length Per Coil | Type | Notes |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10.15.22 | Cross type |
| 600mm | 86 | 14M | BTO-10.15.22 | Cross type |
| 700mm | 72 | 12M | BTO-10.15.22 | Cross type |
| 800mm | 64 | 10M | BTO-10.15.22 | Cross type |
| 960mm | 52 | 9M | BTO-10.15.22 | Cross type |
Packing & Delivery:
1. sheet is packed by pallet or strapped into bundle.
2. sheet in carton or wooden case.
3. rolls in water-proof paper+plastic film.

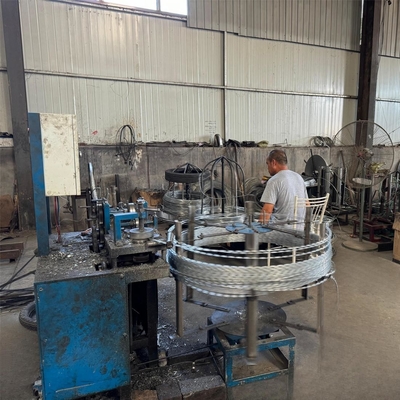

Producing department:
ANPING SHUXIN MANUFACTORY CO.,LTD,established in 2013.We are located in Anping county,Hebei province.Know as the hometown of Chinese wire mesh.
We are professional manufacturer and have professional technological.
Our mainly product: Chicken Cage, wire mesh basket, wire mesh container, defensive barrier, Gabion, razor wire, and barbed wire etc.
If you want to customize,please contact us.
