Product Details:
|
| Material: | Galvanized Iron Wire | Size: | 100x80x30/200x100x30 Cm, Etc |
|---|---|---|---|
| Mesh Size: | 50X50 Mm,50 X100 Mm | Wire Gauge: | 4.0, 5.0 Mm |
| Finish: | Galvanized | Customization: | Yes |
| Highlight: | welded wire gabion baskets,retaining wall gabion cages |
||

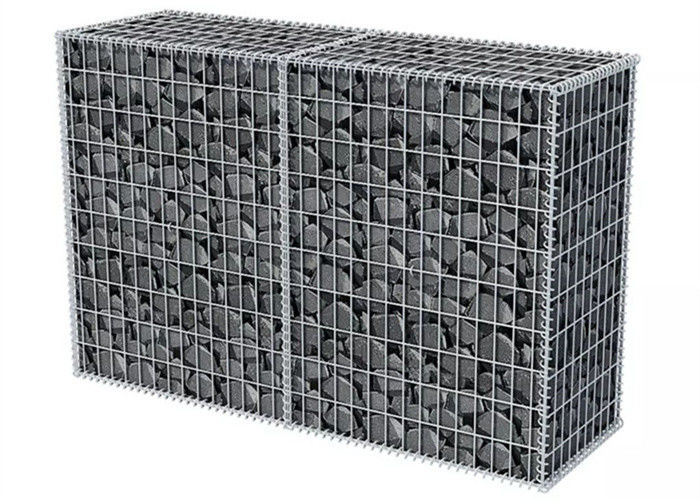

Hot Dip Galvanized Welded Gabion Stone Walls Decorative Gabion Wall
Description
Welded Gabion stone cage is made of Welded Wire Mesh panels assembled with spirals, locking pins and stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.
On site, the unit can be opened out into the required position and the sides, diaphragm and end panels are rotated vertically. The vertical joints are formed by a continuous lacing operation with the wire supplied or with 'C' rings to form the box shape.
| Specifications of Welded Gabion Box | |
|
Zinc coated
|
200-300g/㎡
|
|
Material
|
low carbon iron wire ,galvanized iron wire
|
|
Wire diameter
|
3mm,4mm,5mm,6mm,etc.
|
|
Stiffener lenfth
|
300mm
|
|
Spiral binder wire diameter
|
3mm,4mm
|
|
Mesh size
|
50x50,50x100,75x75,75x100,100x100,50x200mm,etc.
|
|
Box size
|
2x1x1m,2x1x0.5m,1x1x1m,etc.
|
Feature
* Corrosion-resistant,rust-resistant
* Oxidation-resistant,good tensile strength
* Uniform mesh size,flat and even mesh surface,weave tightly
* Easy to handle and cut
* Galvanized for longer life,low costs.
* Surface clean and have no dirt or rust,traces of grease.
How to install Welded Gabion Box?
1) Foundation preparation
The foundation on which the gabions are to be placed shall be cut or filled and graded as required. Surface irregularities, loose material, vegetation, and all foreign matter shall be removed from foundation surface area. Extra care should be taken with foundation preparations in order to ensure a level and smooth surface.
2) Assembly
Rotate the gabion panels into position and join the vertical edges with fasteners for gabion assembly. Where spiral fasteners are used, crimp the ends to secure the spirals in place. Where C ring type alternate fasteners are used for basket assembly, install the fasteners at a maximum spacing of 150 mm. Use the same fastening procedures to install interior diaphragms where they are required. Interior diaphragms will be required where any inside dimension exceeds 1m for gabion baskets. Diaphragms will be installed to assure that no open intervals are present that exceeds 1m.
3) Placement

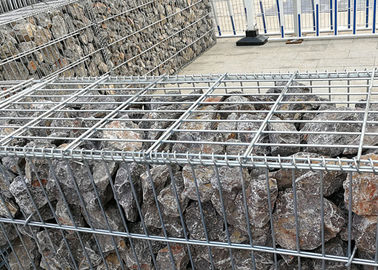

Place the empty gabions on the foundation and interconnect the adjacent gabions along the top, bottom, and vertical edges using spirals or C rings.
4) Filling
The gabions shall be carefully filled with rock, ensuring alignment, avoiding bulges, and providing a compact mass that minimizes voids.
The last layer of rock shall be uniformly leveled to the top edges of the gabions. Lids shall be placed over the rock filling using only approved lid closing tools as necessary. The use of crowbars or other single point leverage bars for lid closing is prohibited due to the potential for damage to the baskets. The gabion lid shall then be secured to the sides, ends, and diaphragms with spiral binders, approved alternate fasteners, or lacing wire wrapped with alternating single and double halfhitches in the mesh openings.
Application
| 1. Control and guide of water or flood | 2. Preventing of rock breaking |
| 3. Rock fall protection | 4. Water and soil protection |
| 5. Bridge protection | 6.Strengthening structure of soil |
| 7. Protection engineering of seaside area | 8. Port project |
| 9. Keep off dust wall | 10.roadway protection |
