Garden Welded Mesh Gabions Retaining Wall Stone Cage Box Hot Dipped Galvanised

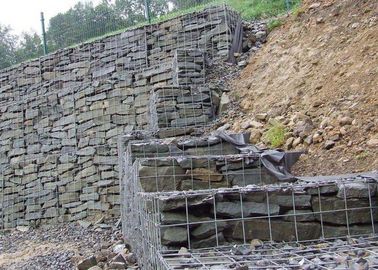

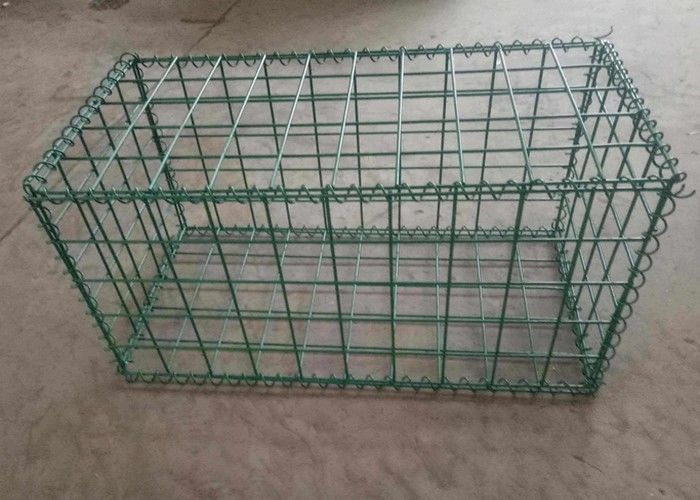

Garden Welded Mesh Gabion Retaining Wall Stone Cage Box

Welded Mesh Gabion Specification:

Welded mesh gabion advantages:

• Blends easily and harmoniously with the natural surroundings.
• Low cost alternative to concrete or masonry structures.
• Very high resistance to natural forces due to better tensile strength.
• Can withstand any unpredictable movement or settlement without loss of stability.
• Simple and speedy installation, making it cost effective.
• Quality finish and appearance is more aesthetically pleasing.
• More rigid than woven mesh resulting in a more uniform finish when built.
• Quicker and cheaper to install than Woven Mesh gabions because no pre-stretching required.
• Special gabions sizes and mesh such as gabions with 4mm front mesh and 3mm mesh else can be available.

How to install welded mesh gabion box?

1) Foundation preparation
The foundation on which the gabions are to be placed shall be cut or filled and graded as required. Surface irregularities, loose material, vegetation, and all foreign matter shall be removed from foundation surface area. Extra care should be taken with foundation preparations in order to ensure a level and smooth surface.

2) Assembly
Rotate the gabion panels into position and join the vertical edges with fasteners for gabion assembly. Where spiral fasteners are used, crimp the ends to secure the spirals in place. Where C ring type alternate fasteners are used for basket assembly, install the fasteners at a maximum spacing of 150 mm. Use the same fastening procedures to install interior diaphragms where they are required. Interior diaphragms will be required where any inside dimension exceeds 1m for gabion baskets. Diaphragms will be installed to assure that no open intervals are present that exceeds 1m.

3) Placement
Place the empty gabions on the foundation and interconnect the adjacent gabions along the top, bottom, and vertical edges using spirals or C rings.

Modular Assembly

Gabion cages can be built in a modular method by eliminating an end panel for each cage so no two panels need be connected together. The same method may also be used for successive courses including lid and base panels. Interconnect each layer of gabions to the underlying layer of gabions along the front, back, and sides.

4) Filling
Staking of the gabions may be done to maintain the established proper alignment prior to the placement of rock. Connecting lacing wire and other fasteners shall be attached during the filling operation to preserve the strength and shape of the structure.
Internal connecting cross-tile (stiffener) wires shall be placed in each unrestrained gabion cell, including gabion cells left temporarily unrestrained. In welded mesh gabions these crossties or stiffeners will be placed across the corners of the gabions providing diagonal bracing. Lacing wire or preformed wire stiffeners may be used.
The gabions shall be carefully filled with rock, ensuring alignment, avoiding bulges, and providing a compact mass that minimizes voids.
The last layer of rock shall be uniformly leveled to the top edges of the gabions. Lids shall be placed over the rock filling using only approved lid closing tools as necessary. The use of crowbars or other single point leverage bars for lid closing is prohibited due to the potential for damage to the baskets. The gabion lid shall then be secured to the sides, ends, and diaphragms with spiral binders, approved alternate fasteners, or lacing wire wrapped with alternating single and double halfhitches in the mesh openings.

Welded Mesh gabion Application:

1.) Flood discharge and lead flow

2.) Rock fall defending

3.) Preventing the water and soil lost

4.) Protecting the bridge

5.) Reinforce fabric

6.) Seashore recovery project

7.) Seaport project

8.) Block wall

9.) Defending the road

FAQ :

1. Which port can you support?

Answer: Tianjin port or any other China port you need. If provided destination port, CFR and CIF can be quoted for your reference.

2. What's your delivery time of your products?

Answer: Usually it takes about 20-25 days after receiving the advance payment to send out the goods by sea or air.

3. What about the terms of payment?

Answer: Most customers choose 30%TT advanced payment, balance against copy of BL.Other terms of payments ways like LC.

For small orders, paypal and westunion also available.

4. What's your Minimum order quantity(MOQ) of your product?

Answer: Most customers choose 1x20"GP as trial order. Small orders are also accepted.
