cross razor wire bto-22

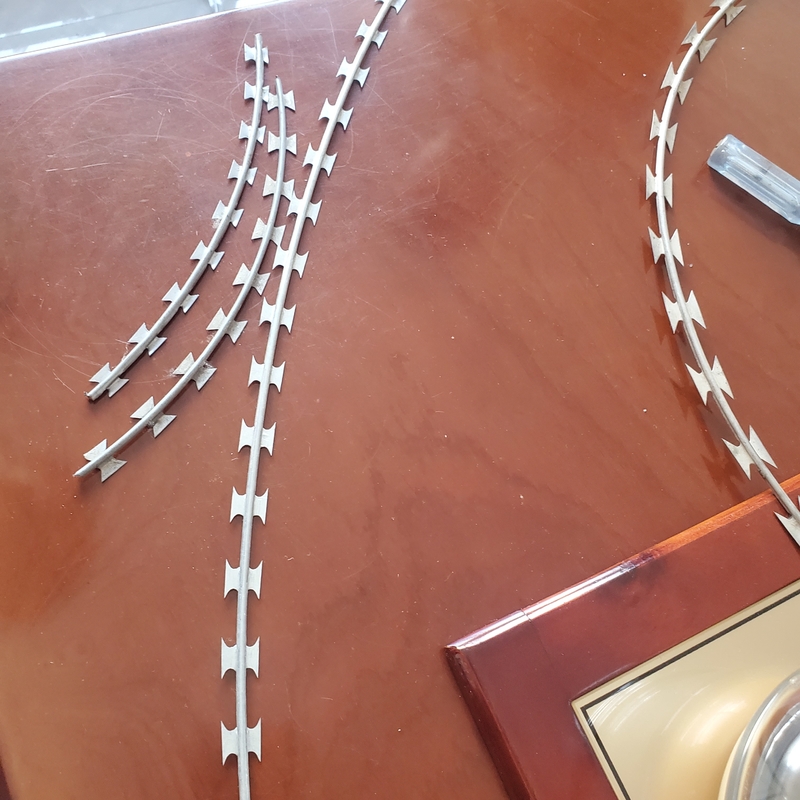

Large Image : cross razor wire bto-22

Product Details:

Place of Origin:	China,hebei
Brand Name:	SHUXIN
Certification:	PVOC, COC, SASO C/O
Model Number:	SX-003

Payment & Shipping Terms:

Minimum Order Quantity:	10 sets
Price:	negotiated
Packaging Details:	Paper
Delivery Time:	15 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets per week

Contact Now

cross razor wire bto-22

Description

Coil Diameter:	500mm-980mm	Model:	Bto-10 12 18 22 28 30 Cbt-60 65
Surface Treatment:	Galvanized	Plate Thickness:	0.3mm 0.5mm 0.6mm
Core Wire Diameter:	2.5mm	Barbed Length:	10 12 18 22 28 30 60 65
Origin:	China,hebei	Number:	SX-003
Highlight:	barbed wire and razor wire , barbed wire razor , barbed wire razor wire

All the specification and packing can be designed according to the customers need.

Model	Thickness	Wire dia	Barb Length	Barbed Width	Barb Spacing
BTO-10	0.5+/-0.05 mm	2.5+/-0.1mm	10+/-1mm	13+/-1mm	26+/-1mm
BTO-12	0.5+/-0.05 mm	2.5+/-0.1mm	12+/-1mm	15+/-1mm	26+/-1mm
BTO-18	0.5+/-0.05 mm	2.5+/-0.1mm	18+/-1mm	15+/-1mm	38+/-1mm
BTO-22	0.5+/-0.05 mm	2.5+/-0.1mm	22+/-1mm	15+/-1mm	38+/-1mm
BTO-28	0.5+/-0.05 mm	2.5+/-0.1mm	28+/-1mm	15+/-1mm	53+/-1mm
BTO-30	0.5+/-0.05 mm	2.5+/-0.1mm	30+/-1mm	21+/-1mm	54+/-1mm
CBT-60	0.6+/-0.05 mm	2.5+/-0.1mm	60+/-2mm	32+/-1mm	102+/-1mm
CBT-65	0.3+/-0.05 mm	2.5+/-0.1mm	65+/-2mm	21+/-1mm	102+/-1mm

Outside diameter	No. of loops	The utmost effective length	Type	Notes
450 mm	33	7 - 8 M	CBT 60.65	Single coil
500 mm	56	12 - 13 M	CBT 60.65	Single coil
700 mm	56	13 - 14 M	CBT 60.65	Single coil
960 mm	56	14 - 15 M	CBT 60.65	Single coil
450 mm	56	8 - 9 M (3 CLIPS)	BTO - 10.12.18.22.28.30	Cross type
500 mm	56	9 - 10 M (3 CLIPS)	BTO - 10.12.18.22.28.30	Cross type
600 mm	56	10 - 11 M (3 CLIPS)	BTO - 10.12.18.22.28.30	Cross type
600 mm	56	8 - 10 M (5 CLIPS)	BTO - 10.12.18.22.28.30	Cross type
700 mm	56	10 - 12 M (5 CLIPS)	BTO - 10.12.18.22.28.30	Cross type
800 mm	56	11 - 13 M (5 CLIPS)	BTO - 10.12.18.22.28.30	Cross type
900 mm	56	12 - 14 M (5 CLIPS)	BTO - 10.12.18.22.28.30	Cross type
960 mm	56	13 - 15 M (5 CLIPS)	BTO - 10.12.18.22.28.30	Cross type
980 mm	56	14 - 16 M (5 CLIPS)	BTO - 10.12.18.22.28.30	Cross type
