Product Details:
|
| Mesh Size: | 3"x 3" Or 7.62cm X 7.62cm | Internal Cells: | 5 Cells Or 4 Cells Or Single One Cell |
|---|---|---|---|
| Geotextile Fabric: | 300g/㎡ | Geotextile Color: | White, Beige Or Military Green |
| Application: | Military Defensive Barrier, Flood Barrier, Etc. | Life Duration: | ≥ 25 Years |
| Useful: | Perimeter Security And Defence Walls | Feature: | Equipment Revetments |
| Highlight: | 5 cells bastion barrier,hot dipped galvanized bastion barrier,hesco bastion barrier |
||
Hot Dipped Galvanized Hesco Barriers for Security Mesh Military Blast Barrier Military gabion Flood Barriers

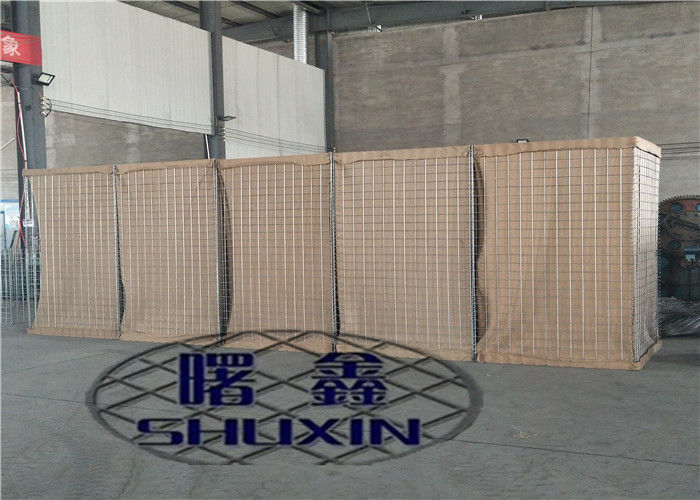

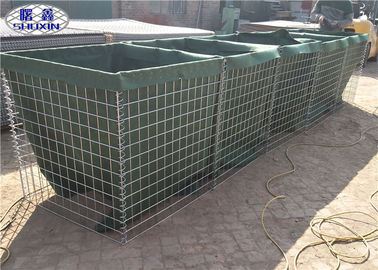

Sand Filled Barriers also named as welded gabion box, etc. It is a prefabricated, multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,then like a defence wall or bunker,it is widely used for military fortification and flood control.Accessories Supplied With Carrier Units.
Sand Filled Barriers operational principle
It is made of galvanized welded mesh panels, spring with other fittings, canbe filled with sand,earth,
cement, stone, can be used in separate cell or some cells joint together.
Sand Filled Barriers Detail Specification
1. Wire diameter: 4-5mm
2. Mesh size: 3" (75x75mm,50x50mm)
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.

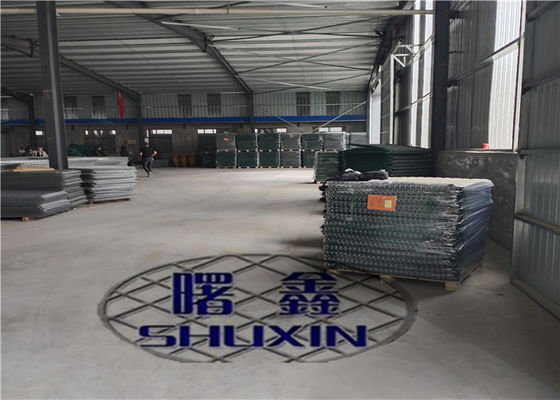

7. Packing: wrapped with shrink film or packed in pallet
Sand Filled Barriers Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Sand Filled Barriers Application
1.Perimeter security and defence walls
Sand Filled Barriers Features
1. having a Galfan coated steel mesh framework
2. integrated cells to provide internal structural integrity.
3. exceptional strength and structural integrity
4. High tensile and anti-impact capability
5. making transportation efficient and rapid
The hesco bastion is a modern gabion primarily used for flood control and military fortifications. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms. It has seen considerable use in Iraq and Afghanistan,Dominican Republic, Afghanistan, Iraq, USA, France, Kenya, Iran, Saudi Arabia, Italy, Germany.Pakistan, Kazakhstan, Mali, Burkina Faso, Ghana, Mozambique
