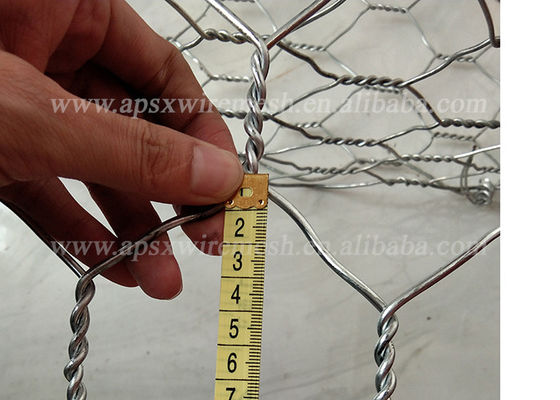

Galfan Rustproof Hexagon 7X9cm Galvanized Gabion Basket For Seawall Protection

Galfan Rustproof Galvanized Hexagon Gabion Basket For Seawall Protection

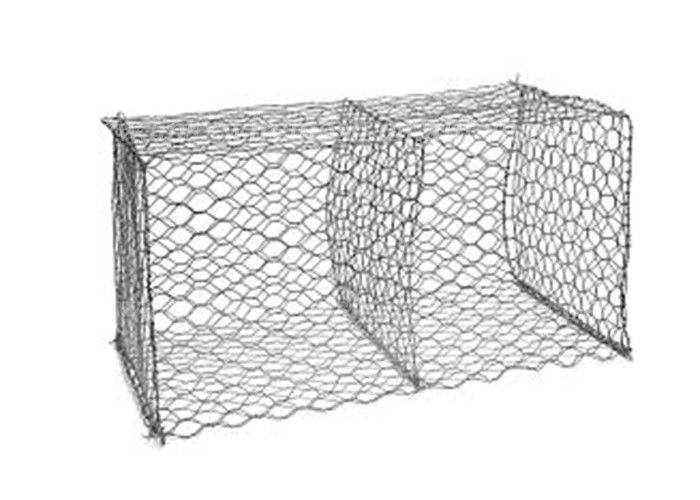

Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.

Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.

Specification Sheet of Foldable Stone Filled Woven Gabion Wire Mesh :

PS: People often use Hot Dipped Galvanized, Or Galfan Coated Gabion Wire Mesh, The using life can be 20 years, it is more suitable.

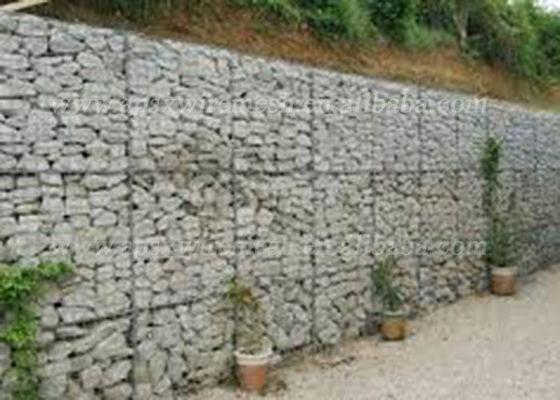

Gabion Baskets are galvanized steel, double twisted, woven wire mesh filled with stone and used for various applications including, but not limited to, retaining walls, slope paving, out fall structures, weirs, drop structures and stream bank protection. Earth Wall Products’ Double Twisted Hexagonal Mesh Gabion Baskets are manufactured in accordance with and meet the guidelines of ASTMA975-97. The stone fill material used for filling the gabion units is clean, hard stone with pieces ranging from 4 – 8 inches on the greatest dimension.

Gabion box application:

Control and guide of water or flood

Flood bank or guiding bank

Preventing of rock breaking

Water and soil protection

Bridge protection

Strengthening structure of soil

Protection engineering of seaside area

Advantages:

• Economy, Just put the stone into the cage is okay to use.
• It is simple to Operation, No need special skills.
• Strong ability to resist the effects of natural damage, corrosion and weather.
• It will not collapse with a wide range of deformation
• It is good to Growing for Plant between the gap of Stone,together with the Environmental.
• Has good permeability to prevent damage caused by hydrostatic forces. Conducive to the stability of the slopes and shore beaches
• It is foldable to save space and shipping cost, Assemble easily on the Construction Site.
• Corrosion resistance: galvanized materials are not afraid of sea water.

​Construction steps

The construction combination and stone filling steps can be summarized as follows:

Each unit structure is combined before placement The structure of the pad combination is placed at the construction site, and the cell structures are connected by tie wire.

Rock fill in structure Cover the structure and fasten it with tie wire.
