Heavy Duty Hexagonal 3.0MM Pvc Coated Gabion Wire Mesh For Retaining

Heavy Duty Gabion Basket PVC Coated Hexagonal Gabion Wire Mesh For Retaining

Gabion refers to PVC coating on zinc coating wire fabric containers that comes in variable sizes with rocks filling to form a permanent structure. And the Green Gabion Mattress, also known as Gabion Mattress System by Fibromat makes a great Earth Retention System caters for slopes erosion control, toe and river bank protection, maximizing permeability on the structure while providing reinforcement and grass establishment.

Gabion Mattresses serves as a retaining wall, providing various prevention and protection works such as landslide prevention, erosion and scour protection as well as various type of hydraulic and coastal protection for river, sea and channel protection. This Gabion Mattress System is made up of a specially designed composite in order to maximize its performance through three phases of vegetative process from vegetated to vegetation establishment up to vegetation maturation.

Gabion Box Specification :

Gabion material: galvanized wire, Zn-Al(Galfan) coated wire/PVC coated wire

Gabion wire diameter: 2.2mm,2.7mm,3.05mm etc.

Gabion size : 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m,

5x1x0.3m,6x2x0.3m etc.,customized is available.

Gabion mesh size:60*80mm,80*100mm,100*120mm,120*150mm,or customized

Gabion application: can be widely used in flood controlling,retaining wall,river bank protection,slope protection

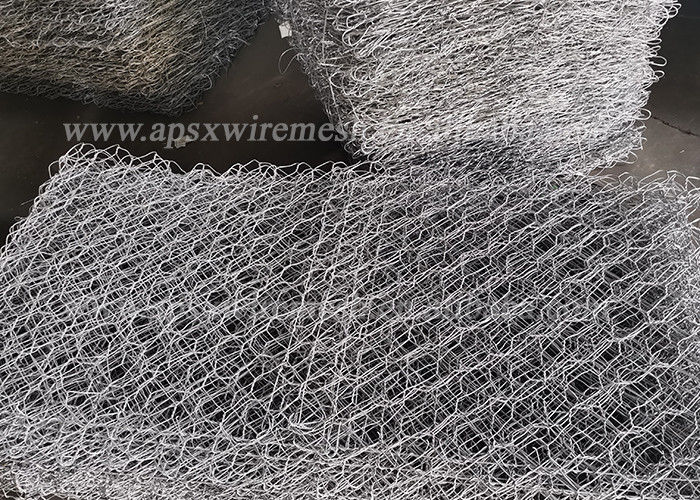

Gabion mesh/ gabion box material:

(1) Galvanized steel wire: diameter 2.0MM-4.0MM, tensile strength >380Mpa, zinc :240g / m2.

(2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >380Mpa.

(3) coated galvanized steel wire: low carbon steel wire PVC coated.

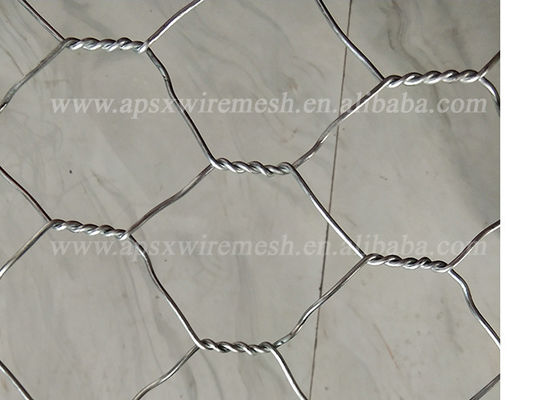

(4) Woven Mesh Opening: Hexagonal Wire Pattern 60*80mm, 80*100mm,100*120mm,

(5) Size: 1*1*1m,2*1*1m, 4*1*1x2m, other size can be produced as requested

Gabion wire mesh box advantage

Economic. Just fill the stone into the gabion and seal it.

Easy to install.

High zinc coating thus anti-rust and anti-corrosive.

Low cost and High security.

Good permeation can prevent the damage by hydrostatic pressure
Less transport freight. It can be folded together for transport and further installation.

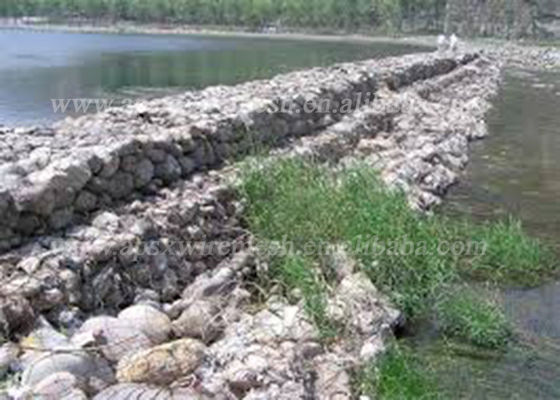

Gabion basket application:

Control and guide of water or flood

Flood bank or guiding bank

Preventing of rock breaking

Water and soil protection

Bridge protection

Strengthening structure of soil

Protection engineering of seaside area

Construction steps

The construction combination and stone filling steps can be summarized as follows: Each unit structure is combined before placement The structure of the pad combination is placed at the construction site, and the cell structures are connected by tie wire. Rock fill in structure Cover the structure and fasten it with tie wire.

Gabion box Features

Strong structure, flat surface, good corrosion resistance, oxidation resistance, etc.
