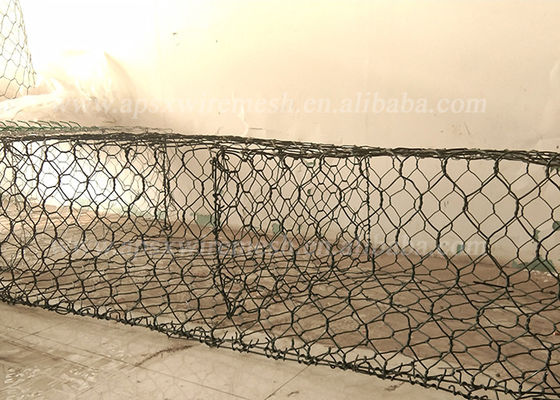

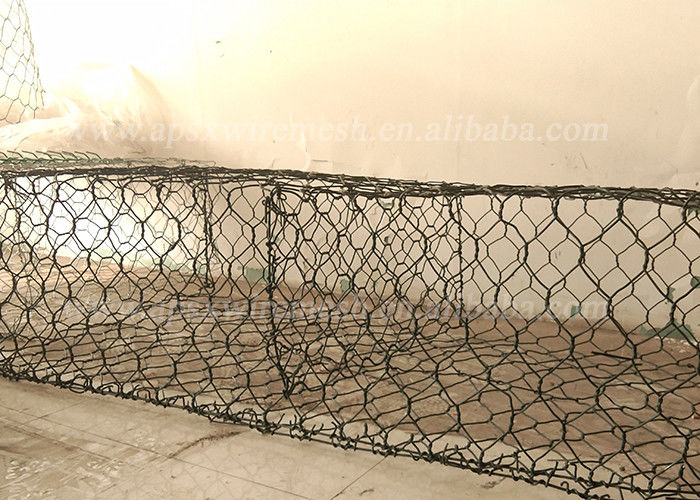

Anti Corrosive 2x1x1m Stone Filled Gabion Wall Cages

Anti-Corrosive 2x1x1m Gabion Baskets Box Design With Stone Filled Cage

Gabion mesh/ gabion box material:

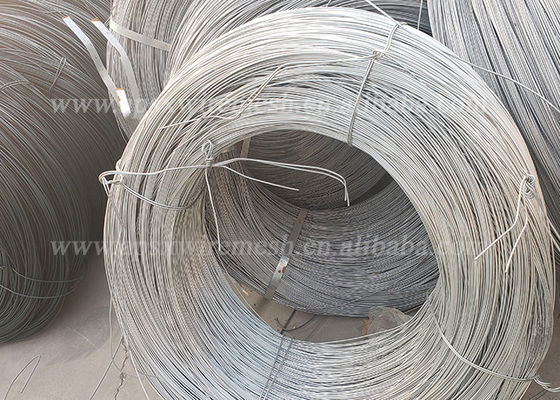

(1) Galvanized steel wire: diameter 2.0MM-4.0MM, tensile strength >380Mpa, zinc :240g / m2.

(2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >380Mpa.

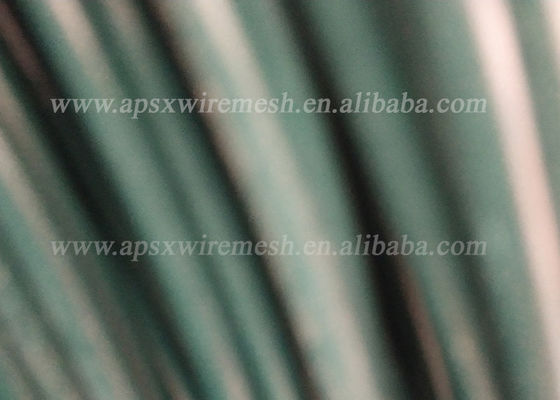

(3) coated galvanized steel wire: low carbon steel wire PVC coated.

(4) Woven Mesh Opening: Hexagonal Wire Pattern 60*80mm, 80*100mm,100*120mm,

(5) Size: 1*1*1m,2*1*1m, 4*1*1x2m, other size can be produced as requested

Gabion wire mesh box advantage

(1) It is convenient to use, and can be used only by tiling the net surface into wall surfaces and building cement;

(2) The construction is simple and does not need special technology;

(3) Strong ability to resist natural damage, corrosion and adverse weather effects;

(4) Can withstand large-scale deformation without collapsing. It plays a role in fixing heat preservation and heat insulation.

(5) The excellent technological foundation ensures the uniformity of coating thickness and has stronger corrosion resistance;

(6) Save transportation costs. It can be shrunk into small rolls and wrapped in moisture-proof paper, occupying little space.

(7) Heavy hex net is made of high-quality low-carbon steel wire with galvanized large wire number. The tensile strength of the steel wire is not less than 38kg/m2, and the diameter of the steel wire can reach 2.0 mm-3.2 mm. The surface of the steel wire is usually protected by hot galvanizing. The thickness of the galvanized protective layer can be made according to the requirements of

customers, and the maximum amount of galvanizing can reach 300g/m2.

Gabion box Features

(1) Economy. Just put the stone into the cage and seal it.

(2) The construction is simple and does not need special technology.

(3) Strong ability to resist natural damage, corrosion and adverse weather effects.

(4) can withstand large-scale deformation without collapsing.

(5) Silt between the cage stones is beneficial to plant production and can be fused with the surrounding natural environment.

(6) It has good permeability and can prevent damage caused by hydrostatic force. It is conducive to the stability of mountain slopes and beaches.

(7) Save transportation costs. It can be folded up for transportation and assembled on the construction site.

(8) Good flexibility: no structural joints, and the overall structure has ductility.

(9) Corrosion resistance: Galvanized materials are not afraid of seawater.

Gabion basket application:

Control and guide of water or flood

Flood bank or guiding bank

Preventing of rock breaking

Water and soil protection

Bridge protection

Strengthening structure of soil

Protection engineering of seaside area

Construction steps

The construction combination and stone filling steps can be summarized as follows: Each unit structure is combined before placement The structure of the pad combination is placed at the construction site, and the cell structures are connected by tie wire. Rock fill in structure Cover the structure and fasten it with tie wire.
