Product Details:
|
| Material: | Galvanized Iron Wire, Low-Carbon Iron Wire | Hole Size: | 6x8cm, 8x10cm, 10x12cm |
|---|---|---|---|
| Surface Treatment: | PVC Coated, Galvanized | Size: | 1*1*1m, 2*1*1m,3*1*1m |
| Feature: | Easily Assembled,Durable | Usage: | Flood Control Retaining Wall |
| Highlight: | galvanized standard stone filled gabions,6x8cm hole stone filled gabions,2*1*1 m galvanized gabion basket |
||
Stone Filled Gabion Product Description

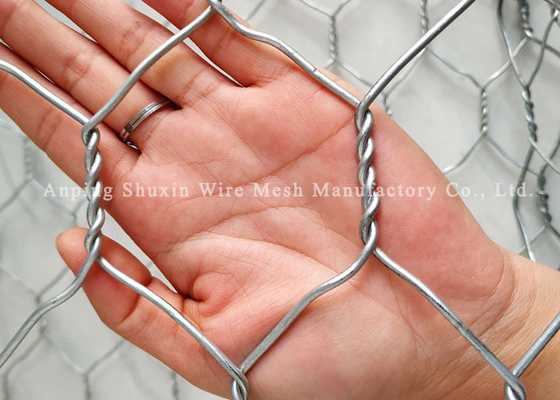

Stone Filled Gabion is a woven gabion basket made of galvanized, twisted, hexagonal woven wire mesh. Baskets constructed from individual units are assembled, bundled together, and then filled with stones to form an integral structure. Gabion and gabion mattresses are used for retaining walls, sound barriers, canal lining, slope stability, dams and weirs. They are particularly effective in restoring the environment and promoting vegetation growth.
Stone Filled Gabion Specification

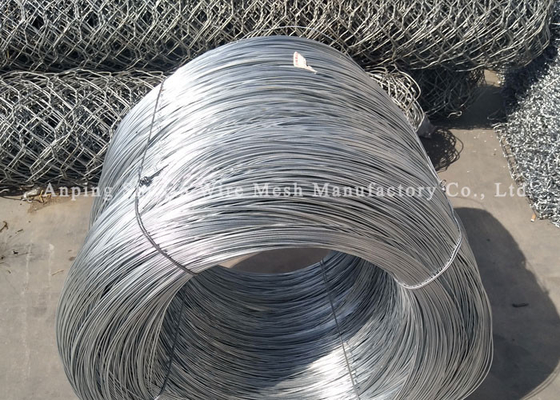

1. Gabion box mesh materials: Hot dipped galvanized, galfan coated and PVC coated gabion box
2. Gabion box mesh wire: 2.0mm, 2.4mm, 2.7mm, 3.2mm, 3.4mm, 4mm
3. Gabion box mesh selvedge wire diameter: 2.4mm, 2.7mm, 3mm, 3.4mm, 4mm
4. Gabion box mesh Tie wire/lacing wire: 2.2mm, 3%, 5%, 8% of weight
5. Gabion box mesh hole: 6*8cm(mesh type6), 8*10cm(mesh type8), 10*12cm(mesh type10), 12*15cm(mesh type12)
6. Gabion box mesh Zinc coating: 220-290G/M2
7. Gabion box mesh size: 2x1x1m, 2x1x0.5m, 6x2x0.3m, as your request
8. Gabion box mesh with diaphragms
| Material |
Galvanized low carbon steel wire |
| Wire diameter | Mesh wire:2.0mm-4.0mm |
| Selvedge wire:3.4mm, 3.8mm | |
| Lacing wire:2.2mm, 2.5mm | |
| Mesh size | 60*80mm, 80*100mm, 90*110mm, 100*120mm |
| Gabion size | 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m |
| Surface treatment |
Galvanized, PVC coated |
| Characteristics | Easy to install, rust prevention, corrosion prevention, low cost, high safety and less goods to be transported. |
| Usage |
Water or flood control and guidance, prevention of rock breakage, coastal area protection projects, road protection.river gabion protection project |
| Packaging | Packed in bundles or pallets or according to customer's requirements. |
Style 1: Gabion Basket
A double-twisted wire mesh container of variable sizes, uniformly partitioned into internal cells,interconnected with other similar units, and filled wih stone at the project size to form flexible ,permeable, monolithic structures such as retaining walls, sea wall,channel linings,revetments,and weirs for erosion control projects.
Style 2: Gabion Mattress
A double-twisted wire mesh container uniformly partitioned into internal cells with relatively small height in relation to other dimensions,having smaller mesh openings than the mesh used for gabions; gabion mattresses are generally used for riverbank protection and channel linings.
Installation Process
1. Ends,diaphragms,front and back panels are placed upright on the bottom section of wire mesh
2. Secure panels by screwing sprial binders through the mesh openings in adjacent panels
3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,and crimped
4. Box gabion filled with graded stone by hand or with a shovel.
5. After filling,close the lid and secure with sprial binders at the diaphragms,ends,front and back.
6. When stacking tiers of the weled gabion,the lid of the lower tier may serve as base of the upper tier.Secure with sprial binders and add pre-formed stiffeners to exterior cells before filling with graded stones.
