Product Details:
|
| Name: | 80x100mm 2x1x1 Pvc Coated Galfan 260 Gsm Gabion Baskets | Wire Thickness: | 2.7, 3.0, 3.4,3.9 Mm |
|---|---|---|---|
| Hole Size: | 6x8cm, 8*10cm ,10x12cm | Surface Treatment: | PVC Coated, Galvanized |
| Application: | Construction Wire Mesh,Cages,Protecting Mesh | Certification: | CE,ISO ,SGS,COC |
| Application: | Can Be Widely Used In Flood Controlling,retaining Wall,river Bank Protection,slope Protection | Feature: | Corrosion Resistance |
| Highlight: | zinc coated 4mm gabion baskets,galfan 4mm gabion baskets,gabion baskets 2x1x1m |
||
80x100mm 2x1x1 pvc coated galfan 260 gsm gabion baskets
Gabion Basket

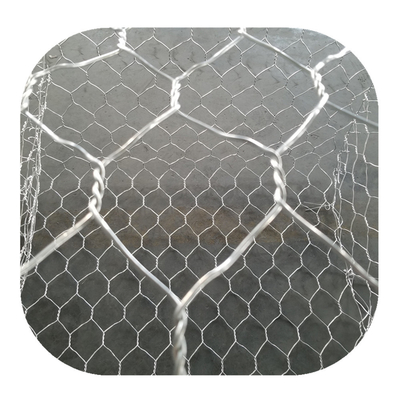

Gabion Baskets are one kinds of Hexagonal Wire Mesh Cage, Update products from Hexagonal Wire Mesh. It is galvanized steel, double twisted, woven wire mesh filled with stone and used for various applications including, but not limited to, retaining walls, slope paving, out fall structures, weirs, drop structures and stream bank protection.
Gabion Basket Specification list
| mesh size : | 60*80mm, 80*100mm, 100*120mm |
| mesh body wire : | 2.7mm,3.05mm |
| edge wire : | 3.4mm,3.8mm |
| Lacing wire : | 2.2mm 3.2mm |
| gabion box size: | 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m 6*2*0.5m |
| Surface treatment : | heavy zinc coated galvanized, pvc coated |
| use | retaining walls, channel lining and other applications |
| Hexagonal Gabion Wire Mesh Basket | ||||||||
|
Mesh Size (mm) |
Number of Diaphragm | Approx Dimentions and Volumes | Tolerance | Color |
Wire Diameter (mm) |
|||
|
Length (m) |
Width (m) |
Height (m) |
Capacity (m³) |
|||||
|
60×80 mm
80×100 mm
90×110 mm
100×120mm
120×150mm
110×130mm
|
1 | 2.00 | 1.00 | 0.30 | 0.60 |
Length±5%
Width±5%
Height±5% |
Blue
Red
Green
Grey
Black |
2.0 -4.0 mm |
| 1 | 2.00 | 1.00 | 0.50 | 1.00 | ||||
| 1 | 2.00 | 1.00 | 1.00 | 2.00 | ||||
| 2 | 3.00 | 1.00 | 0.30 | 0.90 | ||||
| 2 | 3.00 | 1.00 | 0.50 | 1.50 | ||||
| 2 | 3.00 | 1.00 | 1.00 | 3.00 | ||||
| 3 | 4.00 | 1.00 | 0.30 | 1.20 | ||||
| 3 | 4.00 | 1.00 | 0.5 | 2.00 | ||||
| 3 | 4.00 | 1.00 | 1.00 | 4.00 | ||||
| 1 | 2.00 | 0.50 | 0.50 | 0.50 | ||||
| 2 | 3.00 | 0.50 | 0.50 | 0.75 | ||||

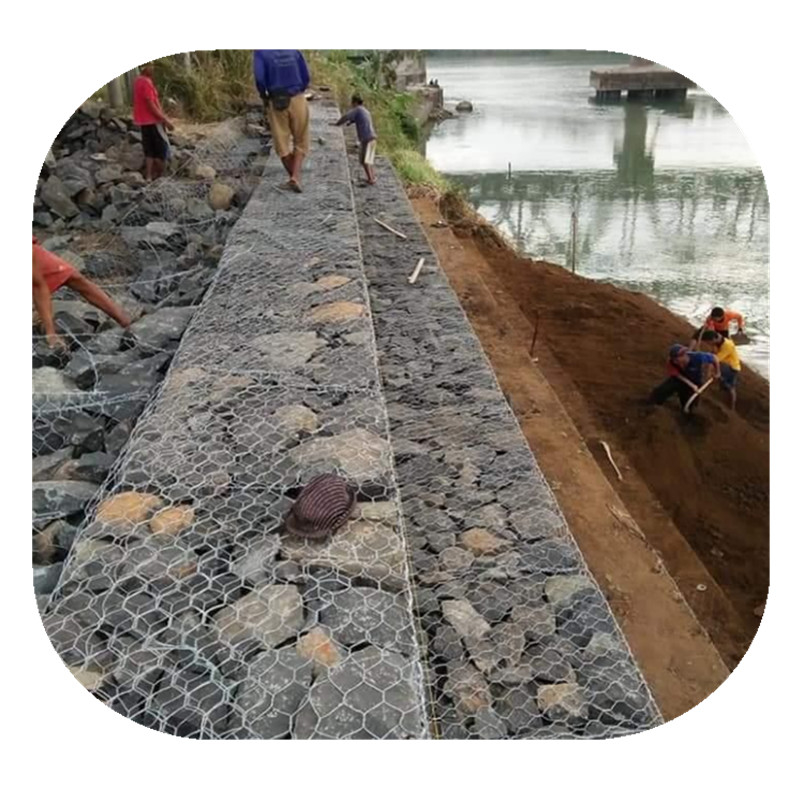

Gabion Basket Application:
Gabion Basket Advantages
(1) It is convenient to use, and can be used only by tiling the net surface into wall surfaces and building cement;
(2) the construction is simple and does not need special technology;
(3) Strong ability to resist natural damage, corrosion and adverse weather effects;
(4) can withstand large-scale deformation without collapsing. It plays a role in fixing heat preservation and heat insulation.
(5) The excellent technological foundation ensures the uniformity of coating thickness and has stronger corrosion resistance;
(6) Save transportation costs. It can be shrunk into small rolls and wrapped in moisture-proof paper, occupying little space.
Gabion Basket Packing and Loading
After the production of gabion net cage is completed, in order to save volume, compression packaging can be bundled.
