Product Details:
|
| Name: | 80x100mm 2x1x1 Pvc Coated Galfan 260 Gsm Gabion Baskets | Wire Thickness: | 2.7, 3.0, 3.4,3.8 Mm |
|---|---|---|---|
| Hole Size: | 6x8cm, 8*10cm ,10x12cm | Surface Treatment: | PVC Coated, Galvanized |
| Application: | Construction Wire Mesh,Cages,Protecting Mesh | Certification: | CE,ISO ,SGS,COC Soncap |
| Application: | Can Be Widely Used In Flood Controlling,retaining Wall,river Bank Protection,slope Protection | Feature: | Corrosion Resistance, Anti Rust |
| Highlight: | anti rust gabion baskets 1mx1mx1m,woven gabion baskets 1mx1mx1m,gabion baskets 1mx1mx1m |
||

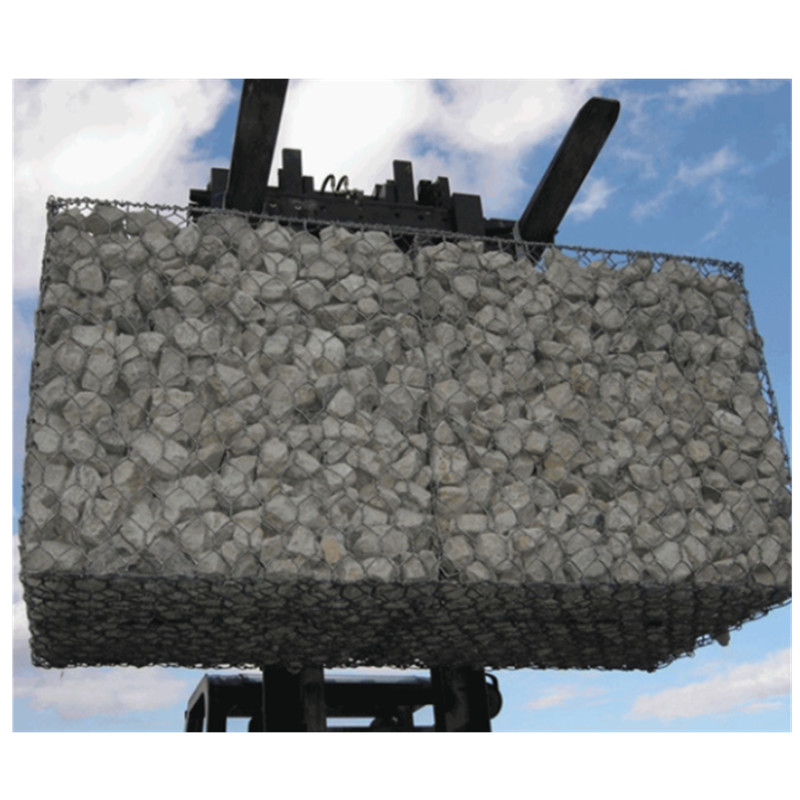

Anti Rust Woven Stone Filled Gabion Rock Protection Gabion Basket
Gabion basket leading manufacturer, 21 set gabion machines, daily output 80,000 square meters.
Rich experience, provide high quality products for multi-national government projects.
Export over 15 years, good reputation and very competitive prices.
Quote in 10 minutes, welcome inquiry.
| Gabion Basket Retaining Wall | ||
| Material | pvc wire, galvanized wire, Zinc-Aluminum wire |  |
| Surface treatment | Hot dipped galvanized, PVC coated | |
| Wire Diameter | 2.7mm body wire, hexagonal, double twist. | |
| Selvedge Wire | 3.4mm 3.8mm | |
| Woven Mesh Opening | Hexagonal Wire Pattern
60*80mm, 80*100mm,100*120mm, ect |
|
| Size | 1*1*1m,2*1*1m, 4*1*1m, other size can be produced as requested | |
| Colour | grey, Green | |
| Hexagonal Gabion Wire Mesh Basket | ||||||||
|
Mesh Size (mm) |
Number of Diaphragm | Approx Dimentions and Volumes | Tolerance | Color |
Wire Diameter (mm) |
|||
|
Length (m) |
Width (m) |
Height (m) |
Capacity (m³) |
|||||
|
60×80 mm
80×100 mm
90×110 mm
100×120mm
120×150mm
110×130mm
|
1 | 2.00 | 1.00 | 0.30 | 0.60 |
Length±5%
Width±5%
Height±5% |
Blue
Red
Green
Grey
Black |
2.0 -4.0 mm |
| 1 | 2.00 | 1.00 | 0.50 | 1.00 | ||||
| 1 | 2.00 | 1.00 | 1.00 | 2.00 | ||||
| 2 | 3.00 | 1.00 | 0.30 | 0.90 | ||||
| 2 | 3.00 | 1.00 | 0.50 | 1.50 | ||||
| 2 | 3.00 | 1.00 | 1.00 | 3.00 | ||||
| 3 | 4.00 | 1.00 | 0.30 | 1.20 | ||||
| 3 | 4.00 | 1.00 | 0.5 | 2.00 | ||||
| 3 | 4.00 | 1.00 | 1.00 | 4.00 | ||||
| 1 | 2.00 | 0.50 | 0.50 | 0.50 | ||||
| 2 | 3.00 | 0.50 | 0.50 | 0.75 | ||||
Gabion Basket Application:
Gabion Basket Advantages
(1) It is convenient to use, and can be used only by tiling the net surface into wall surfaces and building cement;
(2) the construction is simple and does not need special technology;
(3) Strong ability to resist natural damage, corrosion and adverse weather effects;
(4) can withstand large-scale deformation without collapsing. It plays a role in fixing heat preservation and heat insulation.
(5) The excellent technological foundation ensures the uniformity of coating thickness and has stronger corrosion resistance;
(6) Save transportation costs. It can be shrunk into small rolls and wrapped in moisture-proof paper, occupying little space.
Gabion Basket Packing and Loading
After the production of gabion net cage is completed, in order to save volume, compression packaging can be bundled.
