Product Details:
|
| Name: | Gabion Basket | Wire Diameter: | 2.7, 3.0, 3.4,3.8 Mm |
|---|---|---|---|
| Hole Size: | 6x8cm, 8*10cm ,10x12cm | Surface Treatment: | PVC Coated, Galvanized |
| Application: | Construction Wire Mesh,Cages,Protecting Mesh | Certification: | CE,ISO ,SGS,COC |
| Application: | Can Be Widely Used In Flood Controlling,retaining Wall,river Bank Protection,slope Protection | Feature: | Corrosion Resistance |
| Highlight: | 2x1x1m hexagonal wire mesh gabion,pvc coated hexagonal wire mesh gabion,hot dipped galvanized gabion box |
||
Hot dipped galvanized and PVC coated 2x1x1m Gabion Baskets Hot sales in Kenya market
Gabion Basket Description
Gabion basket is a stone gabion, or stone mat woven with galvanized steel wire or PVC coated (diameter 2.2 - 4.4 mm), Used in irrigation,
Gabion Basket Specification list
| mesh hole size : | 60*80mm, 80*100mm, 100*120mm |
| mesh body wire : | 2.7mm,3.0mm |
| edge wire : | 3.4mm,3.8mm |
| tie wire : | 2.2mm |
| gabion size: | 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m |
| Surface treatment : | heavy zinc coated galvanized, pvc coated |
| use | retaining walls, channel lining and other applications |
Gabion Basket Feature
1. Great Perviousness, pliability and anti-corrosion. 2. Resist the scour
3. Holistic capability 4. Easy to Construct 5. Economical and environmental protection

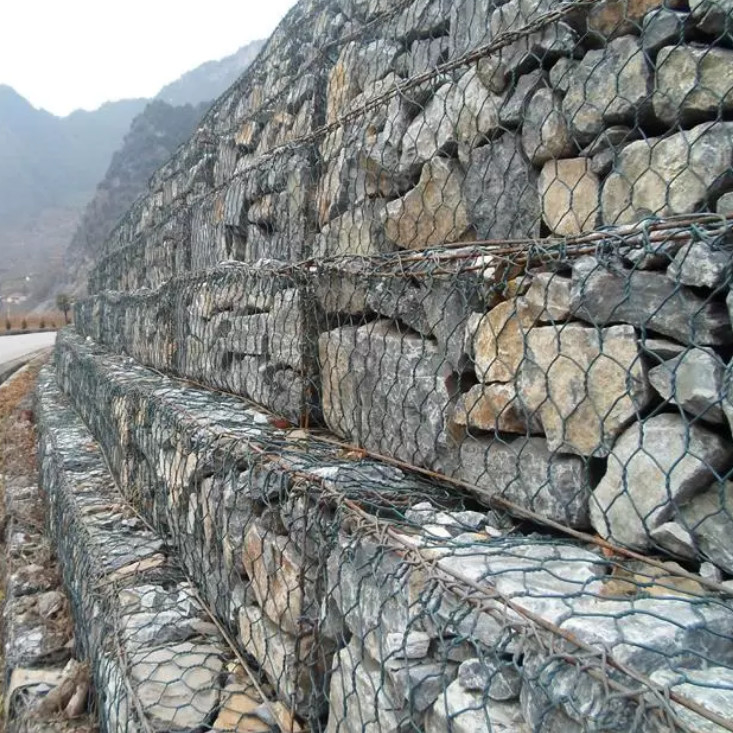

High versatility: Gabion Wall Cages can be stacked to create a retaining wall with vertical, sloping or stepped front face based on the requirements of your project. Meanwhile, woven gabion baskets can be mounted combining various plants for enhanced strength and more pleasing appearance.
Long lifespan: All of our Gabion Wall Cages are heavily galvanized, Zn-Al alloy plated with optional PVC coating to resistant against corrosion and maximum their lifespan. Normally, our galfan gabion and PVC gabion can last up to 120 years based on different exposure conditions.
Robust and flexible structure: woven gabion baskets have robust and flexible structure which enable them to prevent unraveling effectively and withstand forced from water and earth masses.
Good ductility, no structural joints.
Gabion Basket Advantages
(1) It is convenient to use, and can be used only by tiling the net surface into wall surfaces and building cement;
(2) the construction is simple and does not need special technology;
(3) Strong ability to resist natural damage, corrosion and adverse weather effects;
(4) can withstand large-scale deformation without collapsing. It plays a role in fixing heat preservation and heat insulation.
(5) The excellent technological foundation ensures the uniformity of coating thickness and has stronger corrosion resistance;
(6) Save transportation costs. It can be shrunk into small rolls and wrapped in moisture-proof paper, occupying little space.
Gabion Basket Packing and Loading
Packaging Details:100 pieces per bundle,fasten with iron strands.
our near sea Port: Xingang Port ,Tianjin,China
After the production of gabion net cage is completed, in order to save volume, compression packaging can be bundled.
