Product Details:
|
| Product Name: | Obstacle Tanks Hidden Inconspicuous Galvanized Tank Barrier Mesh | Key Words: | Galvanized Tank Barrier Mesh |
|---|---|---|---|
| Material: | Galvanized Steel Wire | Surface: | Galvanized |
| Application: | Security Barrier | Tanglefoot Dimensions: | Tanglefoot Dimensions |
| Wire Diameter: | 0.4-0.9MM | Color: | Metallic |
| Processing Service: | Bending, Welding, Decoiling, Cutting, Punching | Hole Shape: | Round |
| Highlight: | Tank Trap Wire Mesh,Battlefield Defense Works Wire Mesh,Tank Track Wrapping Obstacle Wire Mesh |
||
Obstacle Tanks Hidden Inconspicuous Galvanized tank barrier mesh
Product Overview:
Tank net is a type of metal wire mesh designed specifically for defending tanks. Anti tank net is a special defensive structure mainly composed of high-strength, corrosion-resistant iron wire, which can physically prevent or delay the movement and attack of tanks, effectively slowing down the pushing speed of tanks, and even stopping them completely, providing valuable counterattack time for the defenders. Anti tank wire mesh is mainly divided into two forms: first, it is 10 meters long, 4 meters wide, and 40 centimeters high, suitable for laying on the ground or in grass; second, it is composed of 10-20 circles stacked in a cylindrical shape, with stronger stability and protection ability.
Low visibility, inconspicuous obstacles installed on the groundWith a machine woven into a loop, when it opens, it covers theground, preventing people from entering the closed facility andstopping intruders who are walking or driving from moving.When a person tries to cross this area, they are confused, thereis no way out of the chaos, and there is no outside assistance.When an armored vehicle or tank passes by, the wire mesh spinsaround the wheel, turning into a metal plate in the chassis, makingit impossible to move and difficult to remove from the wheel.
| Arameter | Meaning |
| Unfolded dimensions | 10x10x1.4 m |
| Wire diameter / number of garlands | 0.9 mm / 20 pieces 0.8 mm / 20 pieces 0.6 mm / 20 pieces 0.5 mm / 20 pieces twist - 0.8 mm |
| Folded dimensions | 1.2x0.6x0.8 m |
| Package weight without rings and peg | 24 kg |
| Complete set of the MZP package with rings and pegs | 40 pieces |
| Length(m) | 0.98 | 0.2 |
| Width(m) | 0.68 | 0.4 |
| Height( m) | 0.75 | 0.4 |
| Volume,(m³) | 0.4998 | 0.032 |
Invisible Drone Net Fence Wire Obstacle Low Visibility Mesh Tank Security Putanka Barrier Russia
Inconspicuous wire obstacle are intended to impede movement, hinder the advance and maneuver of violators of the state border,provide border units and reserves with favorable conditions for blocking and detaining them, limit the action of animals and people on signaling and control means.

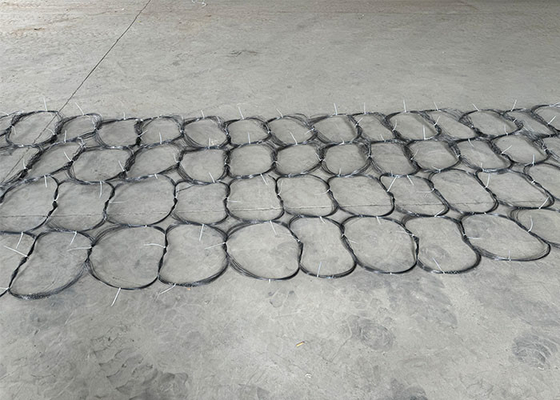

inconspicuous obstacle Wire woven into rings into a garland. When opened, it forms a ground covering of wire garlands, which prevents people from entering the closed facility.
What happens when you hit an inconspicuous obstacle?
If a person tries to go through into the territory, he gets confused in it. There is no way to get out of the confusion without
outside help. Therefore, the offender remains safely waiting for the guard on the spot. When an armored vehicle or tank passes,the vehicle wraps around the wheels and turns into a pile of metal on the chassis, preventing it from moving further. And it’s difficult to remove such a gift from the wheels.
Process:
production processSecure the start of the 0.9 mm wire to one of the tubes at the start of a row.Lay a row of ramps in the correct direction, then return in the opposite direction following the pattern of laying the ramps to close the row of ramps. Rewind the start of the wire secured to the tube (secured by winding) onto the last turn of the closed ramp. Do not cut the wire at the end of the row! Each row is braided with a single wire along all 20 layers!
