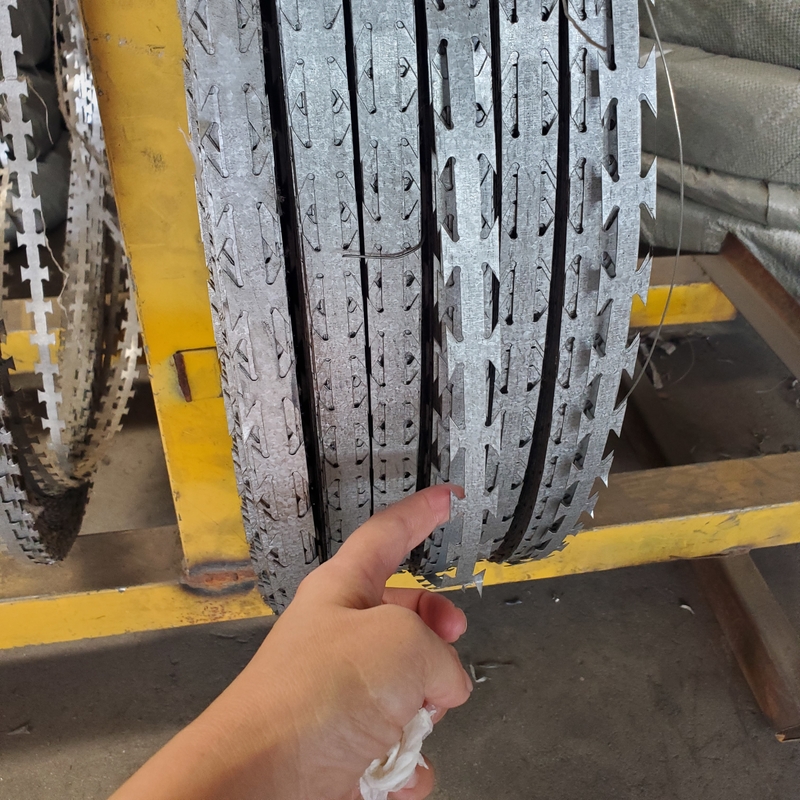

Product Details:
|
| Warranty: | 1 Year | Coil Diameter: | 500mm-980mm |
|---|---|---|---|
| Ventilation: | Side Ventilation | Material: | Galvanized Steel |
| Packaging: | Standard Export Packaging | Lifespan: | 15 Years |
| Model: | Bto-10 12 18 22 28 30 Cbt-60 65 | Plate Thickness: | 0.3mm 0.5mm 0.6mm |
| Highlight: | Galvanized Steel barbed wire and razor wire,Bto - 22 barbed wire razor,barbed wire razor wire Bto - 22 |
||
| Outside diameter | No. of loops | The utmost effective length | Type | Notes |
| 450mm | 33 | 7-8M | CBT 60.65 | Single coil |
| 500mm | 56 | 12-13M | CBT 60.65 | Single coil |
| 700mm | 56 | 13-14M | CBT 60.65 | Single coil |
| 960mm | 56 | 14-15M | CBT 60.65 | Single coil |
| 450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
