Product Details:
|
| Raw Material: | Hot Dippled Galvanized Wire | Geotextile: | 300 G/㎡ Standard |
|---|---|---|---|
| Mesh Diameter: | 5.0mm Diameter | Apeture: | 3" (76.2mm×76.2mm) |
| Color: | Military Green, Sand Color | Accessories: | Staple, Joint Pin |
| Brand: | KESCO, Not HESCO | Sample: | Free Sample |
| Stock: | Some Types Have Stock, Welcome To Inquiry | ||
| Highlight: | Galvanized Military Sand Fill Defensive Barrier,Kenya Military Sand Fill Defensive Barrier,Mil 10 Military Sand Fill Defensive Barrier |
||

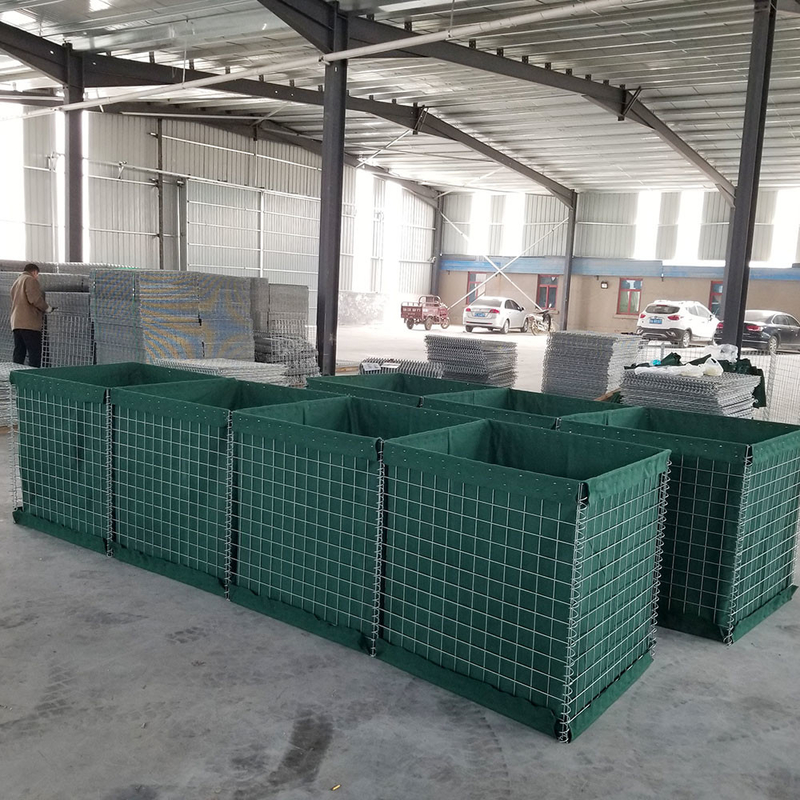

Mil 10 Galvanized Welding Military Sand Fill Defensive Barrier Used For Kenya
Hot galvanized wire
Usually, the materials for welding gabion boxes are hot-dip galvanized wire and Galfan coated wire, which are corrosion resistant, high in strength and long in service life. Wire diameter: 5.0mm (thick enough to withstand impact)

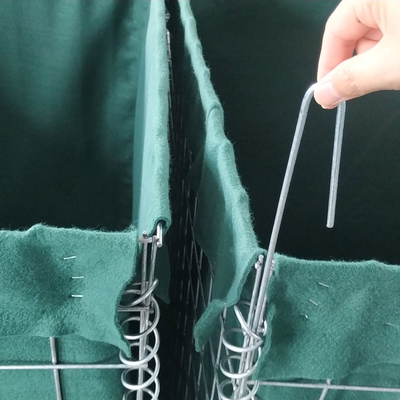

Spring wire for connecting mesh plates
Usually, the spring wire is made of the same wire as the metal panel. It informs the net cage to load sand or stones together with the panel. Spring wire diameter: 4.0 mm
Welded mesh plate
We have a full-automatic machine, which is mainly used for thick-line welding of screen plates, and deep welding points make the screen plates firmer. Mesh: 75mm * 75mm (standard and strong) You can also make bigger holes according to customer's requirements.

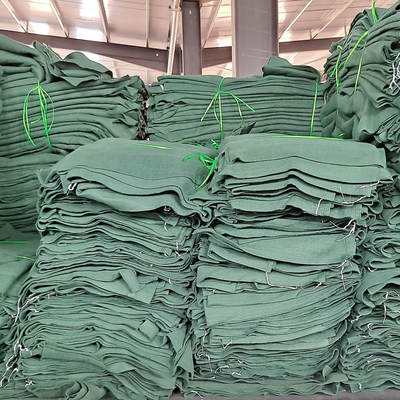

Geotextile
It has various colors: sand, brown, gray and green. Generally, the weight of geotextile is 300 GSM and our geotextile is uniform in thickness, reaching the national standard.
Defensive barrier specifications:
1. Wire diameter: 4-5mm
2. Mesh size: 3x3 inches (7.62*7.62 cm)
3. Panel Size: 13 species
4. Application: used for any security protection and sudden attack
5. Geotextiles: Heavy Non-woven Polypropylene
6. Color: gray, green, sand, etc
7. Surface Treatment: Hot Dip Galvanizing, Galvanizing Wire
8. Packaging: Packaging with shrink film or pallet
The Standard Technical Specifications from SX1 to SX19
| Welded Military Used Shooting Range Barrier | |||
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
Application of Defensive barrier:
Peripheral security and defense wall
Equipment protection
Shelter for personnel and materials
Observation point
Defensive firing position sentry
Explosive and contraband search area
Highway inspection station
Border crossing checkpoint
Protect existing structures
Flood control retaining wall beach erosion
Coastal Area Protection Project
Advantages of Defensive Barrier:
1. Removable
It is assembled by panels and spring wires, and can be folded into a whole during loading and transportation.
2. Anticorrosion
The raw material is hot-dip galvanized wire, which can be used for 10 years or more and is suitable for external protection.
3. Easy installation
When you get it, open it in a spacious place and fill it with sand and mud. Even 2-3 people can finish it.
4. Rapid displacement
When you want to use it in another place, just move it and it can be used many times.
5. Easy to repair
If a part is damaged, throw it away and connect it with a new one.
