Product Details:
|
| Color Of Geotextile: | Grey And Military Green,Sand Color Etc | Geotextile: | 200g/m2 Or 300g/m2 |
|---|---|---|---|
| Finish: | Hot Dipped Galvanized,Galfan Wire. Welded Method:welded After Galvanized Or Galvanized After Welded | Packing: | Wrapped With Shrink Film Then Packed In Wood Pallet Or Iron Pallet |
| Mesh Wire: | 4mm | Application: | Military Barriers，River Pretection,Hesco Barrier |
| Warranty: | ≥ 5Years | Cell: | 1*1*10,1*1*5m |
| Highlight: | 1.5 Lbs Military Defensive Barrier,Space Military Defensive Barrier,Ultimate Protection Military Defensive Barrier |
||
Quick Details
| Unit Type |
Height (M) |
Width (M) |
Length (M) |
Internal Cells |
| SX-01 | 1.37 | 1.08 | 10 | 9 |
| SX-02 | 0.61 | 0.61 | 1.22 | 2 |
| SX-03 | 1.0 | 1.0 | 10 | 10 |
| SX-04 | 1.0 | 1.5 | 6 | 6 |
| SX-05 | 0.61 | 0.61 | 3.05 | 5 |
| SX-06 | 1.68 | 0.61 | 3.05 | 5 |
| SX-07 | 2.21 | 2.13 | 8.25 | 4 |
| SX-08 | 1.37 | 1.22 | 10 | 9 |
| SX-09 | 1.0 | 0.76 | 6.84 | 9 |
| SX-10 | 2.13 | 1.52 | 7.6 | 5 |
| Flexibility | Flexible |
| Cells Number | 20 Cells (5+5+5+5) |
| Warranty | ≥ 3 Years |
| Durability | High |
| Application | Military Barriers, River Protection Hesco barier |
| Cell Sizes | 1*1*1m, 1*1*5m |
| Technique | Welded Mesh |
| Wire Tensile | 500-800MPa |
| Packing | In Pallet |
| Diameter | 4-6mm |

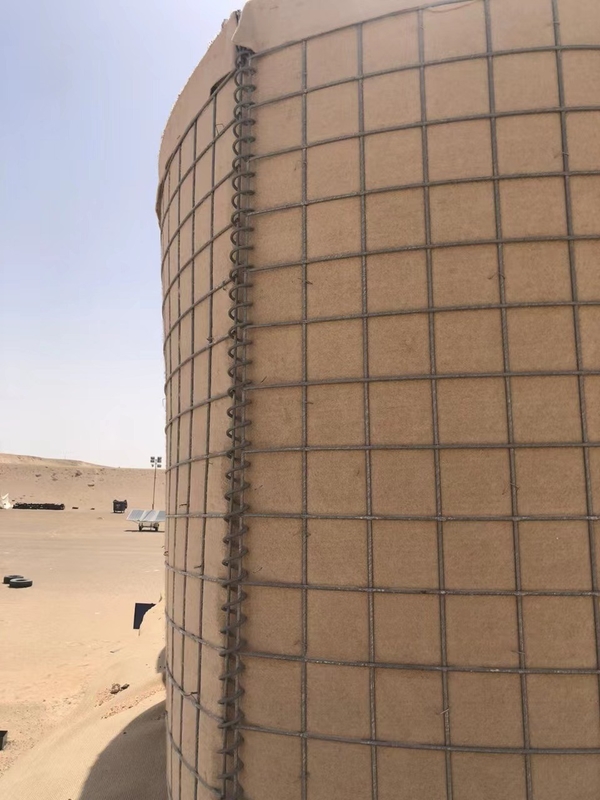

Hesco Sand Filled Barriers Features
1. having a Galfan coated steel mesh framework
2. integrated cells to provide internal structural integrity.
3. exceptional strength and structural integrity
4. High tensile and anti-impact capability
5. making transportation efficient and rapid
Detail Specification
1.Wire diameter: 4-5mm
2. Mesh size: 75x75mm,50x50mm
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color:Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
7. Packing: wrapped with shrink film or packed in pallet
