Product Details:
|
| Raw Material: | Hot Dippled Galvanized Wire | Geotextile: | 300 G/㎡ Standard |
|---|---|---|---|
| Mesh Diameter: | 5.0mm Diameter | Apeture: | 3" (76.2mm×76.2mm) |
| Color: | Military Green, Sand Color | Accessories: | Staple, Joint Pin |
| Brand: | KESCO, Not HESCO | Sample: | Free Sample |
| Stock: | Some Types Have Stock, Welcome To Inquiry | ||
| Highlight: | Military Sand Filled Barrier Wall,Heavy Galvanized Welding defensive barrier,Anti Corrosion defensive barrier |
||
Heavy Galvanized Welding Anti-corrosion HESCO Defensive Military Sand Filled Barrier Wall In Canada
Defensive barrier characteristics:
Easy to handle and install
High strength and impact resistance
Long service life and normal use
Can be filled with sand, cement, stone, soil.
Hot galvanized wire
Usually, the materials for welding gabion boxes are hot-dip galvanized wire and Galfan coated wire, which are corrosion resistant, high in strength and long in service life. Wire diameter: 5.0mm (thick enough to withstand impact)
Spring wire for connecting mesh plates
Usually, the spring wire is made of the same wire as the metal panel. It informs the net cage to load sand or stones together with the panel. Spring wire diameter: 4.0 mm

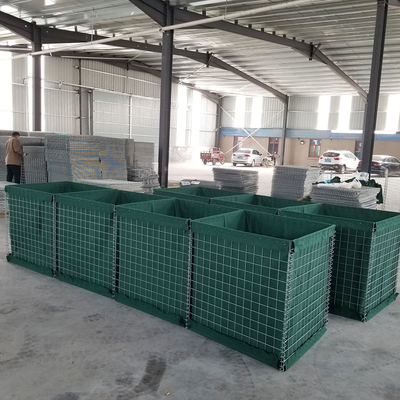

Welded mesh plate
We have a full-automatic machine, which is mainly used for thick-line welding of screen plates, and deep welding points make the screen plates firmer. Mesh: 75mm * 75mm (standard and strong) You can also make bigger holes according to customer's requirements.
Geotextile
It has various colors: sand, brown, gray and green. Generally, the weight of geotextile is 300 GSM and our geotextile is uniform in thickness, reaching the national standard.
The Standard Technical Specifications from SX1 to SX19
| Welded Military Used Shooting Range Barrier | |||
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
Application of Defensive Barrier:

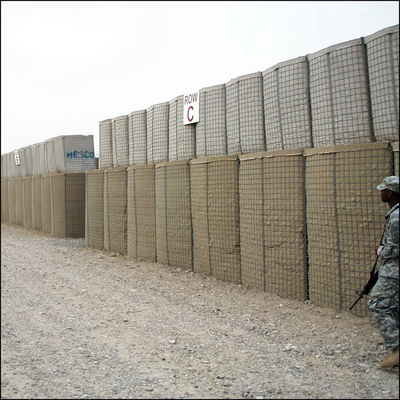

1. Military fortifications
Most armies use defense barriers to build military fortifications because they can be stacked on top of each other. You can change the width and height according to your requirements. More simple and flexible.
2. Shooting range
Nowadays, many people use defense barriers to build shooting ranges because of its high defense strength and safety.
3. Flood control
Defense barriers are becoming more and more popular and easy to assemble, and good permeability. Most countries near coastlines choose defense barriers as flood prevention walls. Even around the hotel, they erected protective walls.
Advantages of Defensive Barrier:
1. Removable
It is assembled by panels and spring wires, and can be folded into a whole during loading and transportation.
2. Anticorrosion
The raw material is hot-dip galvanized wire, which can be used for 10 years or more and is suitable for external protection.
3. Easy installation
When you get it, open it in a spacious place and fill it with sand and mud. Even 2-3 people can finish it.
4. Rapid displacement
When you want to use it in another place, just move it and it can be used many times.
5. Easy to repair
If a part is damaged, throw it away and connect it with a new one.
