Product Details:
|
| Product Name: | Security Fencing Defensive Bastion Barrier Explosion Proof Gabion Mesh | Processing Service: | Bending, Welding, Cutting, Defensive Barriers |
|---|---|---|---|
| Application: | Defensive Barriers, River Protection | Packing: | Wooden Pallet |
| Geotextile: | 300 Gsm, Sand, Green | Key Words: | Security Fencing Defensive Bastion Barrier |
| Highlight: | Explosion Proof Gabion Mesh,Defensive Bastion Barrier Gabion Mesh,Security Fencing Gabion Mesh |
||
Product Introduction
In actual use, the filling materials can be obtained locally, which is especially suitable in the Gobi Desert where stone is scarce. With the help of advanced tools such as excavators and forklifts, the installation is quick and a strong barbed wire protective wall can be quickly formed. Because it is easy to install, foldable and easy to transport.
The wire mesh container is made of high carbon steel wire and welded by a special welding process. Its yield strength, welding strength and other indicators are greatly improved. The surface treatment adopts hot-dip galvanizing or zinc-aluminum alloy process to greatly improve the corrosion resistance.
The heavy non-woven geotextile liner has flame retardant and UV resistance, which greatly improves the safety and service life during transportation, installation, use and process. The color is generally beige or green.
Peripheral security and defense wall
Equipment protection
Shelter for personnel and materials
Observation point
Defensive firing position sentry
Explosive and contraband search area
Highway inspection station
Border crossing checkpoint
Protect existing structures
Flood control retaining wall beach erosion
Coastal Area Protection Project
1.Removable
It is assembled by panels and spring wires, and can be folded into a whole during loading and transportation.
2.Anticorrosion
The raw material is hot-dip galvanized wire, which can be used for 10 years or more and is suitable for external protection.
3. Easy installation
When you get it, open it in a spacious place and fill it with sand and mud. Even 2-3 people can finish it.
4. Rapid displacement
When you want to use it in another place, just move it and it can be used many times.
5. Easy to repair
If a part is damaged, throw it away and connect it with a new one.
Packing&Shipping

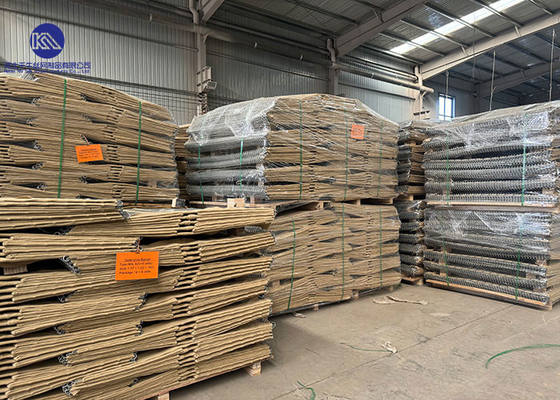

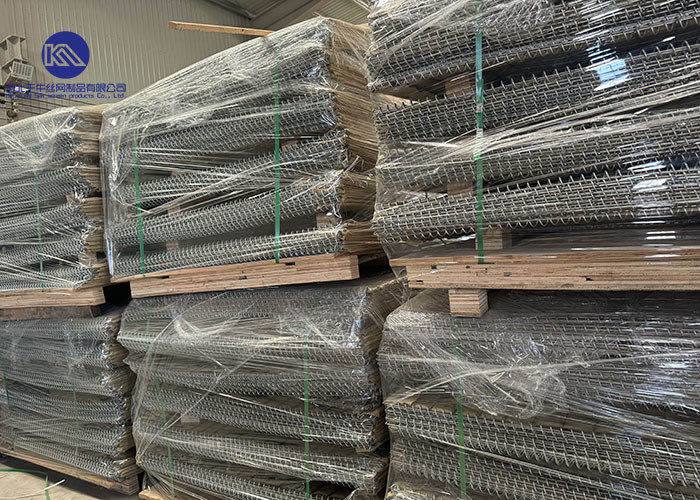

Defensive barrier packing on pallet then wrapped with plastic film outside .
Besides, customers' request are also available.
| MODEL | HEIGHT | WIDTH | LENGTH | WEIGHT | CELLS No.s | |
| KN-1 Unit | 4'6''(1.37mm) | 3'6''(1.06m) | 32'9”(10m) | 149(kg) | 9 | 1x4+1x5cells |
| KN-2 Unit | 2'(0.61m) | 2'(0.61m) | 4'(1.22m) | 10(kg) | 2 | 1x2cells |
| KN-3 Unit | 3'3”(1.00m) | 3'3”(1.00m) | 32'9”(10m) | 113(kg) | 10 | 2x5cells |
| KN-4 Unit | 3'3”(1.00m) | 5'(1.52m) | 32'9”(10m) | 155(kg) | 10 | 2x5cells |
| KN-5 Unit | 2'(0.61m) | 2'(0.61m) | 10'(3.05m) | 22(kg) | 5 | 1x5cells |
| KN-6 Unit | 5'6”(1.68m) | 2'(0.61m) | 10'(3.05m) | 66(kg) | 5 | 1x5cells |
| KN-7 Unit | 7'3”(2.21m) | 7'(2.13m) | 91'(27.74m) | 936(kg) | 13 | 2x4+1x5cells |
| KN-8 Unit | 4'6”(1.37m) | 4'(1.22m) | 32'9”(10m) | 153(kg) | 9 | 1x4cels+1x5cels |
| KN-9 Unit | 3'3”(1.00m) | 2'6”(0.76m) | 30'(9.14m) | 101(kg) | 12 | 2x6cells |
| KN-10 Unit | 7'3”(2.21m) | 5'(1.52m) | 100'(30.50m) | 1040(kg) | 20 | 4x5cells |
| KN-11 Unit | 4'(1.22m) | 12”(0.30m) | 4'(1.22m) | 16(kg) | 2 | 1x2cells |
| KN-12 Unit | 7'(2.13m) | 3'6”(1.06m) | 108'(33m) | 813(kg) | 30 | 6x5cells |
| KN-19 Unit | 9'(2.74m) | 3'6”(1.06m) | 10'5”(3.175m) | 198(kg) | 6 | 1x6cells |
| All dimensions and weight are nominal Diagrams and products are for iustrative purpose onlv. |
||||||
