Product Details:
|
| Material: | Galvanized Wire | Wire Gauge: | 4.0, 5.0 Mm |
|---|---|---|---|
| Length: | 1.2-30 M, 32' | Width: | 0.61-2.13 M, 2' |
| Height: | 0.61-2.21m, 3'6",etc | Aperture: | 3"*3",75x75 Mm |
| Color: | Military Green, Khaki | Product Name: | Mil 1 Mil 5 Mil 10 Welded Hesco Barrier |
| Highlight: | Military Defensive Bastion Barriers,Hesco Blast Wall Defensive Bastion Barriers,Heavy Galvanized Defensive Bastion Barriers |
||
Military Sand Filled Heavy Galvanized Defensive Bastion Barriers Hesco Blast Wall
Product Introduction:
1. Introduction:
Hot dip galvanized gabion boxes with geotextile are also called fortresses, protective walls, sand cages, welded gabion boxes, etc. This is a multi-cellular system made of galvanized welded mesh and lined with non-woven fabric. The provided connection extension and connection unit may be used. It is easy to install and requires minimal manpower and commonly available equipment. After expansion, it is filled with sand and stones, and then welded with gabion barriers like defense walls or bunkers. It is widely used for defensive barriers and flood control.
2. Working principle:

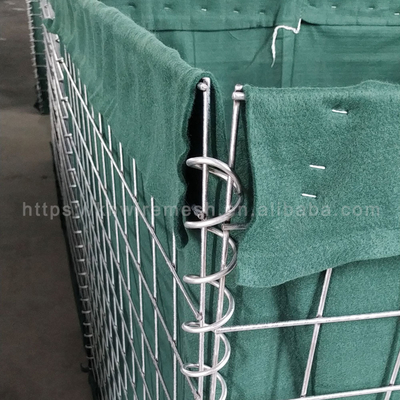

It is made of galvanized welded mesh plate, spring belt and other accessories, which can be filled with sand, soil, cement and stone, and can be used alone or connected by some defense barriers.
3. Quality assurance:
Our factory has been verified by ISO Group, the world's leading inspection company. Our products strictly follow ISO9001 and CE certification. Our products comply with BS EN 10244-2:2009 and BS EN 1208-2:2012
Defensive Bastion Barrier :
1. Wire diameter: 4-5mm
2. Mesh size: 3x3 inches (7.62*7.62 cm)
3. Panel Size: 13 species
4. Application: used for any security protection and sudden attack
5. Geotextiles: Heavy Non-woven Polypropylene
6. Color: gray, green, sand, etc
7. Surface Treatment: Hot Dip Galvanizing, Galvanizing Wire
8. Packaging: Packaging with shrink film or pallet
| MODEL | HEIGHT | WIDTH | LENGTH | WEIGHT | CELLS No.s | |
| KN-1 Unit | 4'6''(1.37mm) | 3'6''(1.06m) | 32'9”(10m) | 149(kg) | 9 | 1x4+1x5cells |
| KN-2 Unit | 2'(0.61m) | 2'(0.61m) | 4'(1.22m) | 10(kg) | 2 | 1x2cells |
| KN-3 Unit | 3'3”(1.00m) | 3'3”(1.00m) | 32'9”(10m) | 113(kg) | 10 | 2x5cells |
| KN-4 Unit | 3'3”(1.00m) | 5'(1.52m) | 32'9”(10m) | 155(kg) | 10 | 2x5cells |
| KN-5 Unit | 2'(0.61m) | 2'(0.61m) | 10'(3.05m) | 22(kg) | 5 | 1x5cells |
| KN-6 Unit | 5'6”(1.68m) | 2'(0.61m) | 10'(3.05m) | 66(kg) | 5 | 1x5cells |
| KN-7 Unit | 7'3”(2.21m) | 7'(2.13m) | 91'(27.74m) | 936(kg) | 13 | 2x4+1x5cells |
| KN-8 Unit | 4'6”(1.37m) | 4'(1.22m) | 32'9”(10m) | 153(kg) | 9 | 1x4cels+1x5cels |
| KN-9 Unit | 3'3”(1.00m) | 2'6”(0.76m) | 30'(9.14m) | 101(kg) | 12 | 2x6cells |
| KN-10 Unit | 7'3”(2.21m) | 5'(1.52m) | 100'(30.50m) | 1040(kg) | 20 | 4x5cells |
| KN-11 Unit | 4'(1.22m) | 12”(0.30m) | 4'(1.22m) | 16(kg) | 2 | 1x2cells |
| KN-12 Unit | 7'(2.13m) | 3'6”(1.06m) | 108'(33m) | 813(kg) | 30 | 6x5cells |
| KN-19 Unit | 9'(2.74m) | 3'6”(1.06m) | 10'5”(3.175m) | 198(kg) | 6 | 1x6cells |
| All dimensions and weight are nominal Diagrams and products are for iustrative purpose onlv. |
||||||
Application Of Defensive Barrier:
Peripheral security and defense wall
Shelter for personnel and materials
Defensive firing position sentry
Explosive and contraband search area
Highway/Border crossing inspection station
Flood control retaining wall beach erosion
Coastal Area Protection Project
1.Removable
It is assembled by panels and spring wires, and can be folded into a whole during loading and transportation.
2.Anticorrosion
The raw material is hot-dip galvanized wire, which can be used for 10 years or more and is suitable for external protection.
3. Easy installation
When you get it, open it in a spacious place and fill it with sand and mud. Even 2-3 people can finish it.
4. Rapid displacement
When you want to use it in another place, just move it and it can be used many times.
5. Easy to repair
If a part is damaged, throw it away and connect it with a new one.
