Product Details:
|
| Material: | Q195 Q235 Low Carbon Wire | Mesh Wire: | 5.0 Mm |
|---|---|---|---|
| Spring Wire: | 4.0 Mm | Surface Treatment: | Heavy Hot Dipped Galvanized |
| Geotextile: | 300gsm Sand Color,Green Color | Life Duration: | ≥ 25 Years |
| Warranty: | ≥ 3 Years | ||
| Highlight: | Emergency Shelter House Hesco Barrier,Hot Dipped Galvanized Hesco Barrier,Army Defensive Hesco Barrier |
||

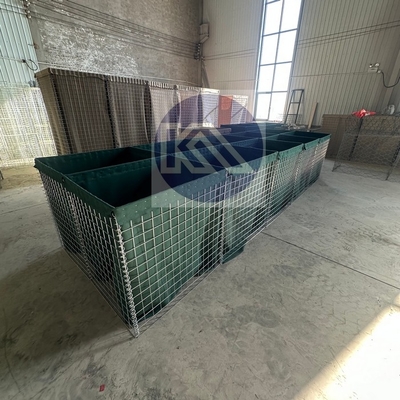

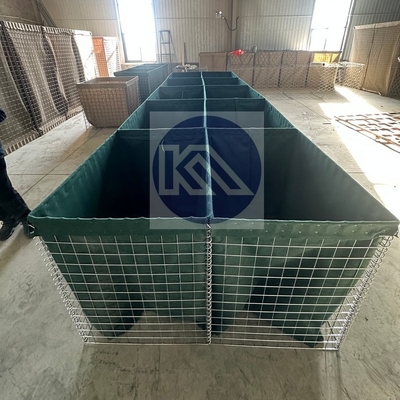

Army Defensive Hesco Barrier with Hot Dipped Galvanized Finish for Emergency Shelter House
Introduction :
( mesh gabion box ) are good Solution for emergency flood control,shelter house,military defence wall.
Army Defensive Hesco Barrier is made of galvanized welded mesh,spring with other fittings,can be filled with sand,earth,cement,stone,can be used in separate cell or some cells joint together.
Finish:hot dipped galvanized,galfan coated
Specification :
1) wire diameter: 4mm-5mm
2) hole: 2''x2'',3''x3'',4''x4''
3) hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
4) geotextile: in non-woven geotextile,color can be white,beige-sand color.
Army Defensive Hesco Barrier Specification
| Model | Height | Width | Length | Internal Cells |
| KN-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| KN-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| KN-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| KN-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| KN-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| KN-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| KN-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| KN-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| KN-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| KN-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| KN-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| KN-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| KN-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Application
1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.
4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.
