Product Details:
|
| Material: | Q195 Low Carbon Wire | Mesh Hole: | 76.2mm X76.2mm, 50mm X100mm |
|---|---|---|---|
| Wire: | 5.00 Mm | Geotextile: | 300gsm Sand Color,Green Color, Beige Color |
| Life Duration: | ≥ 25 Years | Warranty: | ≥ 3 Years |
| Highlight: | Floodwalls Bastion Barrier,Integrated Bulletproof Bastion Barrier,Wildfire Containment Bastion Barrier |
||

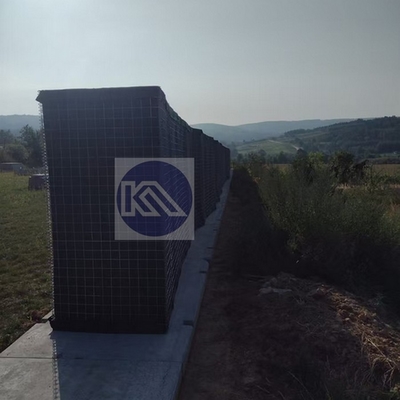

Ballistic Defensive Bastion Barrier Integrated Bulletproof Defense System Create floodwalls or wildfire containment lines
Defensive bastion barriers Details:
Application Scenarios
Military & Defense:
Protect ammunition depots, forward operating bases, or critical infrastructure from IEDs and armed assaults.
Industrial Safety:
Isolate chemical storage zones, oil refineries, or nuclear facilities against explosions.
Urban Security:
Deploy around embassies, data centers, or public events as anti-terrorism barriers.
Disaster Zones:
Create floodwalls or wildfire containment lines in emergency response operations
Defensive bastion barriers is become more popular and become a househole name, because its Outstanding contribution for Flood Control, Military Denfence, and Hotel Protection in flood-prone areas along the River.
Defensive bastion barriers was named after one company made them, and this thechnology was grasped by our people and inproved, has Low-Cost and High-Quality. It is assembled with Hot Dipped Galvanized and Geotextile by Spring and Jonint Pin, which is can block explosion and flood in wide range. Also can as the shooting range in military.
Quick View of Military Bastion:
Material : Low-carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Hole : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size : 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before welding
Defensive bastion barriers Specification
| Model | Height | Width | Length | Internal Cells |
| MIL-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| MIL-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| MIL-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| MIL-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| MIL-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| MIL-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| MIL-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| MIL-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| MIL-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| MIL-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| MIL-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| MIL-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| MIL-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Defensive bastion barriers Application
1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.
4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.
Why Choose Defensive Barrier Bastion?
✅ Cost-Effective:30% lighter than traditional concrete walls, reducing transport/logistics costs.
✅ Eco-Friendly:70% recycled materials, fully recyclable at end-of-life.
✅ Certified Safety: Independently tested by UL, NATO, and DHS-approved labs.
