MIL10 2.21M Welded Gabion Box Hot Dipped Galvanized HESCO Earth-Filled Military Grade Barriers for Flood Control

MIL10 2.21M Welded Gabion Box Hot Dipped Galvanized HESCO Earth-Filled Military Grade Barriers for Flood Control

HESCO Earth-Filled Military Grade Barriers now are very popuar in Africa and Europe and USA market, As the important Military fortifications,  more and more Defensive of Department ordered hesco barrier from our factory.

Product Description

1. A new system of Sand Wall Hesco Barrier developed specially for military use is deployed from a container, which is dragged along the line of ground where the barrier is to be formed, unfolding up to several hundred metres of barrier ready for filling within minutes

Sand Wall Hesco Barrier is a prefabricated, multi-cellular system, made of steel welded mesh – which is a folding and collapsible system – and lined with nonwoven polypropylene geotextile. Units can be extended and joined using the provided joining pins and filled with available material using minimal manpower and commonly available equipment

2. Finish:

Electro galvanized, hot dipped galvanized, galfan coated, PVC coated.

Specification

1) Material : Steel wire, galvanized wire

2) Wire Diameter: 4.0mm 5.0mm

3) Spring Diameter: 4.0mm

4) Mesh Opening: 50*50mm, 75*75mm, 76.2*76.2mm, 50*100mm, 100*100mm, ect

5) Panel Size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested

6) Geotextile color: White, Sand color, Military Green

Sand Wall Hesco Barrier
SX-1	1.37m* 1.06m*10.0m
SX-2	0.61m* 0.61m*1.22m
SX-3	1.0m*1.0m*10.0m
SX-4	1.0m*1.5m*10.0m
SX-5	0.61m* 0.61m*3.05m
SX-6	0.61m* 0.61m*6.10m
SX-7	2.21m*2.13m*8.52m
SX-8	1.37m*1.22m*10.0m
SX-9	1.0m*0.76m*9.14m
SX-10	2.13m*1.52m*7.62m

Features

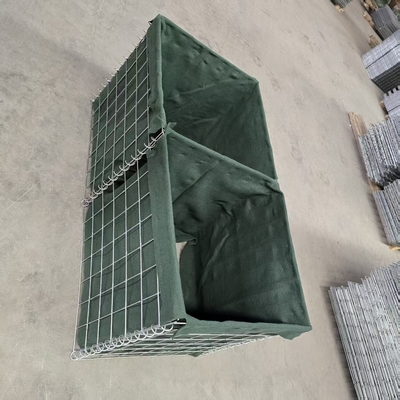

1. A pre-fabricated gabion of galvanised welded-mesh steel fitted with a UV-protected Polypropylene geo-textile liner.

2. Filling material is an easily-obtained mix of sand and small stones.

3. Can be connected together to any length, and can be stacked for additional height.

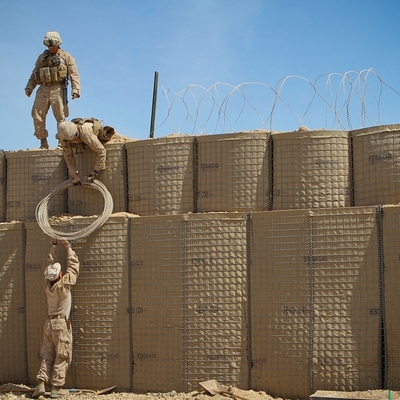

4. Primary military use is as force protection against blast and projectiles.

5. One of the best features of the defensive barrier is the ease in which it is set up. Get it flown in or pull it off a truck, unfold it, use a front end loader or other heavy equipment to fill it up with dirt, sand or gravel.

Applications

Whether used as a preventative barrier or to define boundaries, Sand Wall Hesco Barrier have been employed to safeguard personnel, vehicles, equipment, facilities and critical assets in a variety of military, peacekeeping, humanitarian and civilian operations.
