Product Details:
|
| Raw Material: | Low Carbon Steel Iron Wire | Geotextile: | 250 G/㎡ Or 300 G/㎡ Standard |
|---|---|---|---|
| Sample: | Free In Small Sample | Apeture: | 3" (76.2mm×76.2mm) |
| Color: | Beige Color ( Have Colour Difference) | Surface Treatment: | Hot Dipped Galvanized |
| Highlight: | 2.74M Defensive Bastion Barriers,Geotexticle Cloth Lined Defensive Bastion Barriers,MIL19 Defensive Bastion Barriers |
||
Standard Military Galvanized Stackable Protection Bastion Wall Used For Fllodwater

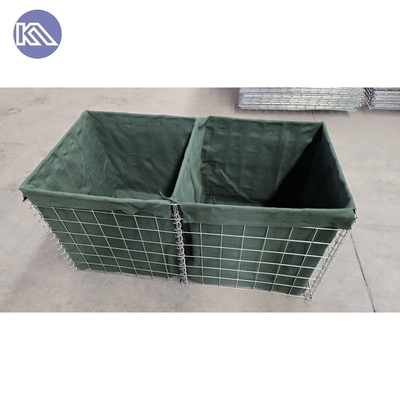

Defensive Bastion filled with sand, earth, stone to heavy its weight to stand against the impact. Nowadays, more and more people accept the Protection Bastion as protection fence. it is constituted by Welded Mesh Panel, helical Wire and non-woven geotextile cloth.Which assembled together form a rectangle wire mesh container.
HESO Bastion is a good material to build your own shooting range. Welded Gabion barrier shooting range can be used together to any length, and can be stacked for additional height. There are different type from SX 1 to SX 19 to meet kinds of requiremetns.
Brief Introduction for Defensive Bastion Barriers Wall:
Material: Galvanized steel wire or Galfan / zinc-5%aluminum wire
Service Life: 15-20 years
Wire diameter: 3.0mm- 6.0mm
Aperture: 3" (76.2mm × 76.2mm ) Standard
Color of geotextile: Grey and Military, Beige, Sand Color and so on.
Weight of Geotextile: 250 g/m2 or 300 g/m2
Finish:hot dipped galvanized,Galfan wire.
Welded method:welded after galvanized or galvanized after welded
The Standard Technical Specifications from SX 1 to SX 19
| Welded Military Fortress | |||
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
The Application for Defensive Bastion Barriers protection Retaining Wall
Military Defense
1. Perimeter Security Barrier and Defence Wall
2. Temporary Fort and Command Post
3. Observation Points and Border Checkpoints
4. Military Barrier Fortification System
5. Equipment Revetment
6. Explosives and Contraband Search Areas
7. Guard Posts
8. Personnel and Material Bunkers
9. Shooting Range
Flood Control
1. Flood Prevention Barrier
2. Permanent or Semi-permanent Dike
3. Flood Control Retaining Wall
4. Protection Engineering of Seaside Area
5. Protecting Existing Structures
6. Coastal Erosion Control
The Advantages of Defensive Protection Barriers:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.
2. Collapsible
Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.
3. Strong Protection
Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
4. Fast and Simple Operation
A security wall using earth-filled barrier can be filled by two persons and a standard front-end loader in just 20 minutes, the equivalent sized wall of 1,500 sandbags will take 10 persons up to 7 hours to fill and build.
